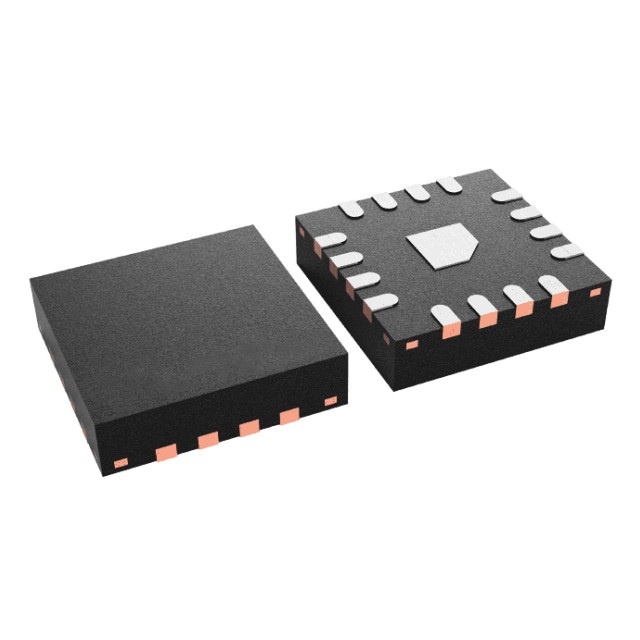

The DAC80508ZCRTE is a low power, eight-channel, buffered voltage output digital-to-analog converter (DAC) with 16-bit resolution ‌. This device contains an internal reference voltage of 2.5V, 5ppm/°C, eliminating the external precise reference required in most applications. User-optional gain configuration provides full-scale output voltages of 1.25V (gain =½), 2.5V (gain =1), or 5V (gain =2) ‌. DAC80508ZCRTE is suitable for industrial, communication and personal electronic devices such as optical modules, field transmitters, battery-powered systems, building automation and wearable electronic devices, etc. ‌.

Key performance

Product: DAC80508ZCRTE

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 5µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 1.7V to 5.5V

INL/DNL (LSB) : ±0.5, ±0.5

Architecture: R-2R

Operating temperature: -40°C to 125°C

Device packaging: 16-WQFN (3x3)

Installation type: Surface mount type
