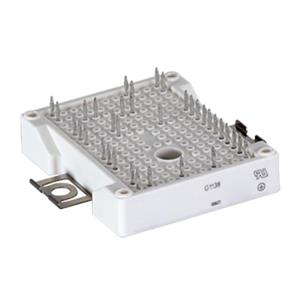

DF120R12W2H3: 1200V, 120A, EasyPACK™ 2B Booster IGBT Module

Basic Information:

Model No.: DF120R12W2H3

Voltage: 1200V

Current: 120A

Type: IGBT Module

Overview: DF120R12W2H3 - 1200V, 120A, EasyPACK™ 2B Booster IGBT Module with PressFIT contact technology and high speed IGBT H3.

DF120R12W2H3 Specifications:

Configuration: Three Phase Inverter

Voltage - Collector Breakdown (max): 1200 V

Current - Collector (Ic) (max): 50 A

Power - Max: 180 W

Vce(on) at varying Vge, Ic (max): 2.4V @ 15V, 40A

Current - Collector Cutoff (max): 1 mA

Input capacitance (Cies) at varying Vce: 2.35 nF @ 25 V

Input: Standard

NTC Thermistor: Yes

Operating Temperature: -40°C ~ 150°C

Mounting Type: Chassis Mount

Package/Housing: Module

DF120R12W2H3 Product Features:

Low switching losses

1200 V fast silicon diode

Al2O3 footprint for low thermal resistance

Integrated NTC temperature sensor

PressFIT contact technology
