S25FL256SAGBHIC00 is a high-performance 256Mbit NOR flash memory produced by Infineon. This memory uses 3.0V CMOS technology and supports SPI, dual-wire SPI, and quad-wire SPI interfaces, making it suitable for a variety of embedded applications.

Core Features (S25FL256SAGBHIC00)

High-performance storage architecture

Storage Capacity: 256Mb (32M × 8), supporting SPI, Dual SPI, and Quad SPI interfaces to enhance data transfer efficiency.

Clock Frequency: Up to 133MHz, supporting Dual Data Rate (DDR) mode to optimise read speeds.

Low Power Design

Operating Voltage: 2.7V to 3.6V, compatible with low-power system requirements.

Standby current: as low as 1μA (typical value), extending battery life.

High reliability

Industrial-grade temperature range: -40°C to +85°C, suitable for harsh environments.

Durability: 100,000 erase/write cycles, data retention for 20 years.

Advanced Sector Protection (ASP): Supports hardware/software locking to prevent accidental erasure.

Flexible interfaces and features

CFI (Common Flash Interface) compatible, simplifying system integration.

OTP (One-Time Programmable) region: 1024 bytes, for secure key storage.

Specifications (S25FL256SAGBHIC00)

Storage capacity: 256Mbit (32MB)

Memory organisation: 32M x 8

Interface type: SPI, dual-wire SPI, quad-wire SPI

Operating voltage: 2.7V to 3.6V

Clock frequency: up to 133MHz

Operating temperature: -40°C to +85°C

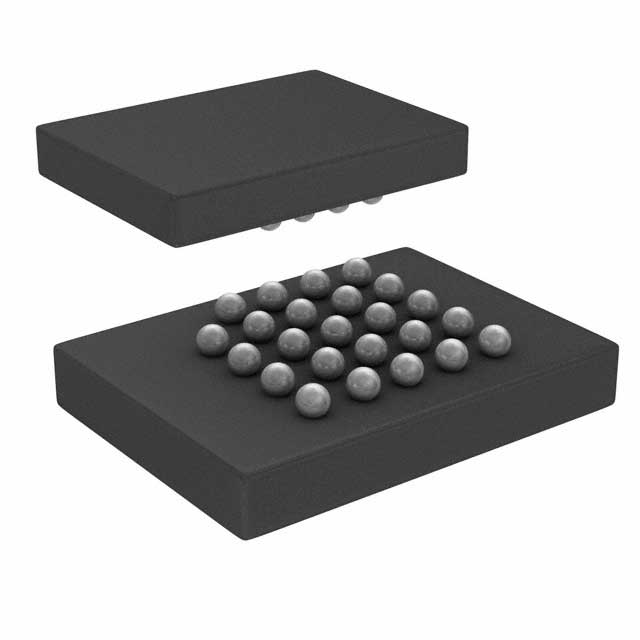

Package Type: 24-pin BGA

Mounting Type: Surface Mount

Typical Applications (S25FL256SAGBHIC00)

Industrial Automation: PLC, HMI, Data Loggers

Automotive Electronics: ECU, ADAS, In-Vehicle Infotainment Systems (IVI)

Communication Equipment: Routers, Base Stations, Network Storage

Consumer Electronics: Smart Home, IoT Devices
