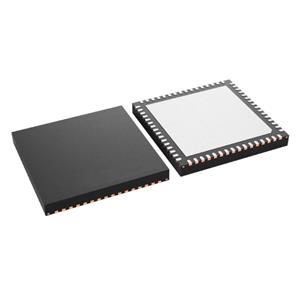

The ADS62P24IRGC is A dual-channel 12-bit A/D converter with a sampling rate as high as 105MSPS. It combines high performance and low power consumption in a compact 64-QFN package. This ADC uses an internal sampling-hold and low-jitter clock buffer to support high SNR and high SFDR at high input frequencies. The ADS62P24IRGC features coarse and fine-tuning gain options, which can be used to enhance SFDR performance within a lower full-scale input range.

Main specifications

Resolution: 12 bits

Number of channels: 2 channels

Interface type: LVDS, Parallel

Sampling ratio: 105 MS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 3.3V

Digital power supply voltage: 3 V to 3.6 V

SNR - Signal-to-Noise Ratio: 71.5 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Package/Box: VQFN-64

Application scenarios

The ADS62P24IRGC is suitable for applications that require high-precision and high-speed data acquisition, such as industrial control, test and measurement, communication equipment, etc. Its high sampling rate and low power consumption make it excel in demanding applications ‌.
