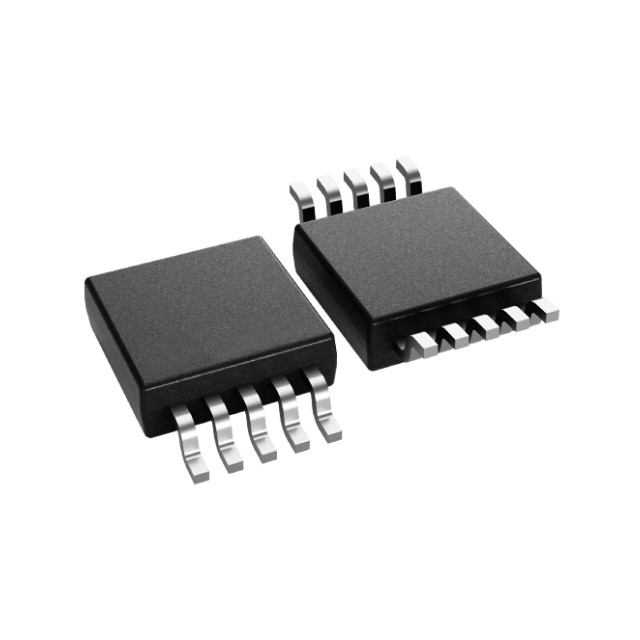

The ADS1114LIDGSR is a precision, low-power, 16-bit, I2C-compatible analog-to-digital converter (ADC) in an ultra-small 10-pin VSSOP package. This device adopts a low-drift voltage reference and an oscillator. The ADS1114LIDGSR also includes a programmable gain amplifier (PGA) and a digital comparator. In addition to these features, this device also has a wide operating power supply voltage range, making it highly suitable for power-constrained and space-constrained sensor measurement applications.

Main characteristics

Power supply voltage range: 2.0V to 3.6V

Low current consumption

150µA (continuous conversion mode)

Programmable data rate: 8SPS to 860SPS

Single-cycle stability

Internal low-drift voltage reference

Internal oscillator

A digital comparator with an ALERT output pin

I2C interface

Four optional addresses for pins

Compatible with 1.8V I2C bus voltage

Operating temperature range:

-40 °C to +125°C

In addition, the ADS1114LIDGSR performs exceptionally well in industrial applications, especially in sensor measurement applications that require high precision and low power consumption. Its high sampling rate and wide operating power supply voltage range make it highly applicable in a variety of application scenarios ‌.
