The ADS8924BRGE is a 16-bit, 250kSPS sampling rate SAR ADC with excellent AC and DC performance for high-precision, high-speed data acquisition applications. Its main features include:

Resolution: 16 bits

High sampling rate without delay output: 250kSPS

Integrated LDO supports single power supply operation

Low-power reference buffer without voltage drop

Outstanding AC and DC performance:

SNR: 96.8dB, THD: -125 dB

INL: ±0.25LSB

DNL: ±0.2LSB, 16-bit, no lost code

Wide input range:

Unipolar differential input range: ±VREF

VREF input range: 2.5V to 5V

Single-power supply low-power operation

Enhanced SPI digital interface

Interface SCLK: 18MHz at 1MSPS.

Configurable data parity check output

Extended temperature range: -40°C to +125°C

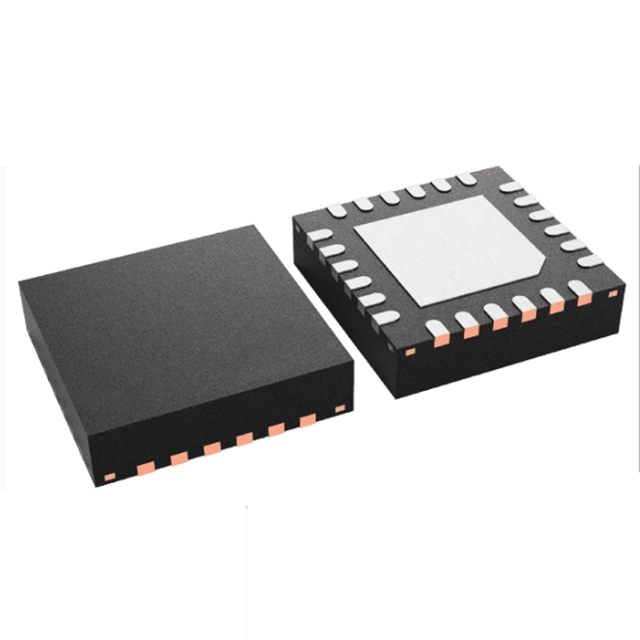

Small package: 4mm × 4mm ultra-thin square flat lead-free (VQFN) package

Application scenarios

The ADS8924BRGE is applicable to the following application fields:

• Testing and measurement

Medical imaging

High-precision and high-speed data acquisition
