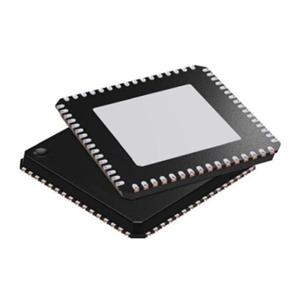

For picture reference, please see the specifications
< >

Commodity Model:ADC3568IRTDT

Trade Name:Analogue To Digital Converters - ADC

Brand:TI

Particular Year:25+

Package:VQFN-64

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADC3568IRTDT
Package
VQFN-64
Describe
A 16-bit single-channel 250MSPS ADC with LVDS interface and up to 32,768 decimation rates

Product Description

The ADC3568IRTDT is a 16-bit 250MSPS single-channel analog-to-digital converter (ADC) designed to achieve a high signal-to-noise ratio (SNR) and offers a noise spectral density of -160dbfs /Hz (500MSPS). The ADC3568IRTDT is equipped with a flexible LVDS interface. In the extraction bypass mode, this device uses a parallel SDR or DDR LVDS interface. When using extraction, the output data is transmitted via the serial LVDS interface, thereby reducing the number of channels required for an increase in extraction. For high extraction rates, the output resolution can be increased to 32 bits.


The characteristics of ADC3568IRTDT

16-bit, single-channel 250MSPS and 500MSPS ADCs

Noise spectral density: -160.4dBFS/Hz

Thermal noise: 76.4dBFS

Single-core (non-interleaved) ADC architecture

Power consumption: 369mW

Aperture jitter: 75fs

Buffered analog input

Programmable 100Ω and 200Ω terminals

Full-scale input: 2VPP

Full power input bandwidth (-3dB) : 1.4GHz

Spectral performance (fIN = 70MHz, -1 DBFS) :

SNR: 75.6dBFS

SFDR HD2,3:80 DBC

The most severe burr of SFDR: 94dBFS

INL: ±2LSB (typical value)

DNL: ±0.5LSB (typical value)

Digital Down-converter (DDC)

Up to four independent DDCS

Complex number and real number extraction

Extraction rate: /2, /4 to /32768 extraction

48-bit NCO phase coherent frequency hopping

Parallel/Serial LVDS interface

16-bit parallel SDR and DDR LVDS for DDC bypass

Serial LVDS for extraction

32-bit output options for high extraction rates
