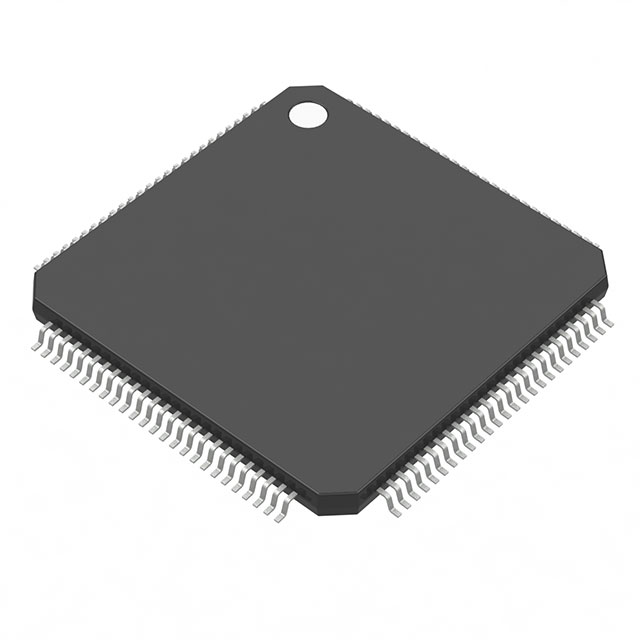

SPC584B70E3NDC0Y is 32-bit Power Architecture microcontroller for automotive ASIL-B applications.

Product Attributes

Core Processor:e200z420

Core Size:32-Bit Single-Core

Speed:120MHz

Connectivity:CANbus, Ethernet, I²C, LINbus, SPI, UART/USART

Peripherals:DMA, POR, WDT

Number of I/O:64

Program Memory Size:2MB (2M x 8)

Program Memory Type:FLASH

EEPROM Size:64K x 8

RAM Size:128K x 8

Voltage - Supply (Vcc/Vdd):1.14V ~ 1.26V, 3V ~ 5.5V

Data Converters:A/D 10b, 12b SAR

Oscillator Type:Internal

Operating Temperature:-40°C ~ 105°C (TA)

Product Features

High performance e200z420

32-bit Power Architecture technology CPU

Core frequency as high as 120 MHz

Variable Length Encoding (VLE)

2112 KB (2048 KB code flash + 64 KB data flash) on-chip flash memory

176 KB HSM dedicated flash memory (144 KB code + 32 KB data)

128 KB on-chip general-purpose SRAM (in addition to 64 KB core local data RAM

Enhanced modular IO subsystem (eMIOS): up to 64 timed I/O channels with 16-bit counter resolution
