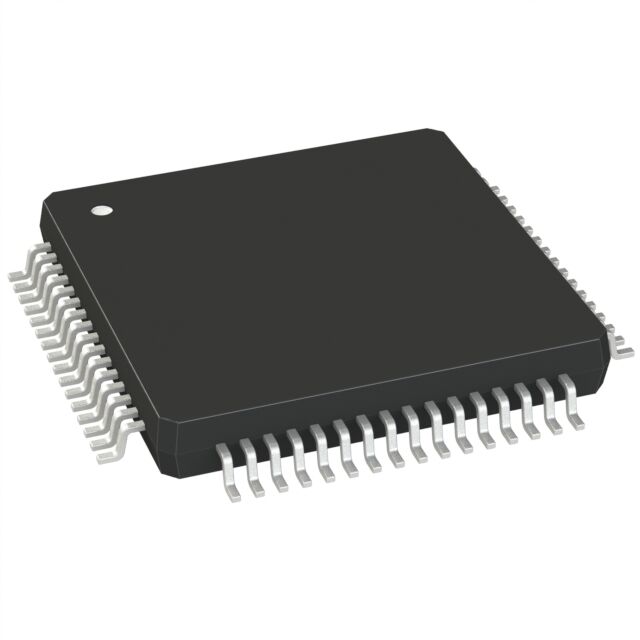

The R7FA0E2094CFM microcontroller is a basic and simple microcontroller (MCU) in the RA0 series entry-level products, featuring excellent cost-effectiveness and ultra-low power consumption. In addition, the R7FA0E2094CFM expands the ROM and PIN of the RA0E1 and is highly compatible with the RA0E1 product group. This device adopts an Arm® Cortex®-M23 core, featuring a high-performance CPU with a frequency of up to 32MHz. It is equipped with up to 128KB of embedded flash memory and 16KB of SRAM, and supports a wide operating temperature range from -40 to 125°C.

Product attributes

Core: ARM Cortex M23

Program memory size: 128 kB

ADC resolution: 12 bits

Maximum clock frequency: 32 MHz

Number of input/output terminals: 57 I/O

Data RAM size: 16 KB

Power supply voltage - minimum: 1.6V

Power supply voltage - maximum: 5.5V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Packaging: Tray

Analog power supply voltage: 1.6V to 5.5V

Data Ram type: SRAM

Interface types: I2C, SPI, UART

Humidity sensitivity: Yes

Number of ADC channels: 15 channels

Timer/counter count: 8 x 16 bits, 1 x 32 bits

Processor series: RA0E2

Program memory type: Flash

Packaging/Cabinet: LQFP-64

Target application

The R7FA0E2094CFM microcontroller is highly suitable for cost-sensitive applications, such as low-power, low-cost consumer electronics, small household appliance system control, industrial system control, and building automation.
