The CYT3DLABBBQ1AESGS is a TRAVEO™ T2G family of dual-core microcontrollers from Infineon designed for automotive electronic systems such as dashboards and heads-up displays (HUD). The following are the main specifications of CYT3DLABBBQ1AESGS:

Core processors: ARM® Cortex®-M0+, ARM® Cortex®-M7F

Core specification: 32-bit dual-core

Speed: 100MHz, 240MHz

Connection capabilities: CANbus, Ethernet, I2C, LINbus, SPI, UART/USART

Peripheral devices: DMA, I2S, LVD, temperature sensor, WDT

I/O number: 108

Program storage capacity: 4.06MB (4.06M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 48x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

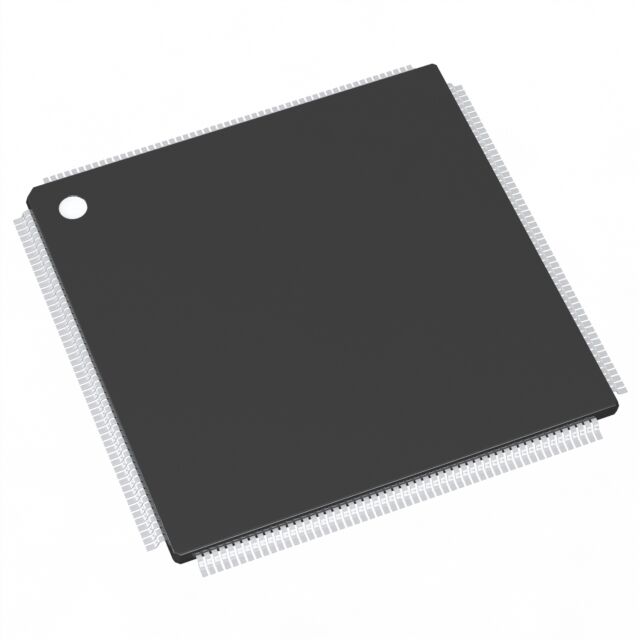

Package: 216-TEQFP (24x24)

This CYT3DLABBBQ1AESGS MCU features a high-performance Arm® Cortex®-M7 processor (with a main frequency of 240MHz) for data processing, as well as an Arm® Cortex®-M0+ processor for peripheral device management and security processing. Support eSHE (Enhanced Secure Hardware Extension) and HSM (Hardware Security Module) hardware security modules.

CYT3DLABBBQ1AESGS is packaged in 216-TEQFP and is suitable for automotive instrument groups, automotive LED front lighting, high-performance cockpit computers, in-vehicle infotainment (IVI), and human-machine interfaces (HMI), among other fields.
