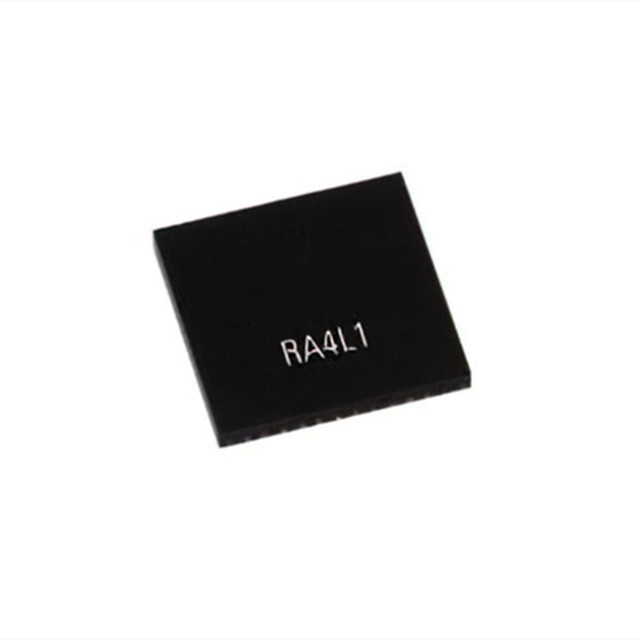

The R7FA4L1BD4CNE is a low power 2-bit microcontroller (MCU) based on a TrustZone® -enabled Arm® Cortex®-M33 (CM33) core, which achieves an ideal balance of low operating voltage, low power and high performance. The operating voltage of RA4L1 is as low as 1.6V, and the standby current is as low as 1.65µ A. It also features multiple low-power functions, allowing users to dynamically optimize power consumption/performance according to application requirements.

The R7FA4L1BD4CNE MCU features low power consumption, such as a segment code LCD display driver and an advanced security engine, as well as RTC, ADC and timer. This MCU integrates communication interfaces such as CAN FD, USB 2.0FS (no external crystal oscillator required), I2C/I3C, and low-power UART. Therefore, the R7FA4L1BD4CNE is highly suitable for industrial automation, home appliances, smart home, consumer goods, building/home automation, and medical/healthcare applications.

Core features

80MHz Arm Cortex-M33 supporting TrustZone

512KB dual-block flash memory supporting BGO

Supports 64KB SRAM with 32KB parity and 32KB ECC

8KB data flash memory

Operating current: 168µA/MHz, standby current: 1.65µA

Fast wake-up within 3.5µS (from MOCO)

Six SCI multi-functional serial ports (UART, simple SPI, simple I2C)

Two low-power UART interfaces supporting 32kHz

Independent SPI/I2C multi-master interface

I3C interface

USB 2.0FS

CAN FD

Four-wire SPI supporting XIP

32-bit and 16-bit timers, 32-bit ultra-low power consumption timers

2 x Watchdog timer

Real-time Clock (RTC

12-bit ADC and 12-bit DAC

Low-power analog comparator

Temperature sensor

8 x 48-segment LCD driver

12-channel capacitive touch

Serial Audio Interface (SSI

Advanced security engine support: TRNG, Unique ID, AES, ECC, SHA
