The CYT3DLABZBQ1AESGS microcontroller drives the automotive instrument panel and head-up display (HUD) through a powerful 240 MHz Arm® Cortex-M7® CPU, featuring up to 4.2MB of flash memory.

Technical parameters

Core processors: ARM® Cortex®-M0+, ARM® Cortex®-M7F

Core specification: 32-bit dual-core

Speed: 100MHz, 240MHz

Connection capabilities: CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, UART/USART

Peripherals: power-off detection/reset, DMA, I2S, LVD, POR, PWM, temperature sensor, WDT

I/O number: 108

Program storage capacity: 4.2MB (4.2M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 48x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 105°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

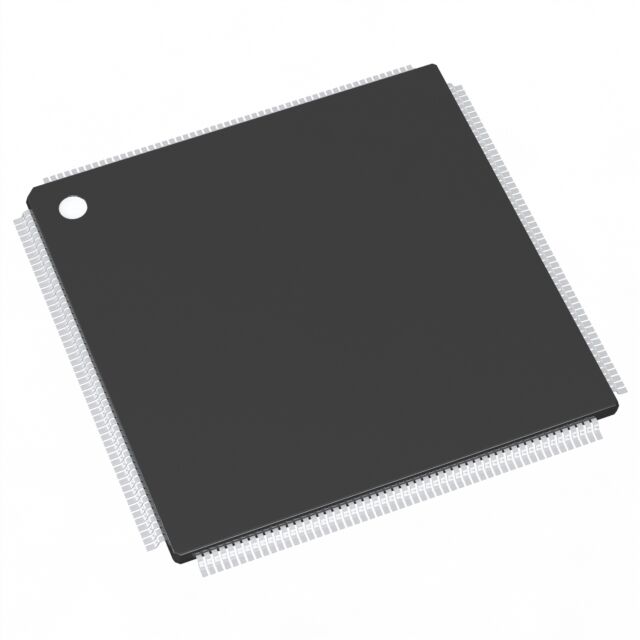

Package: 216-TEQFP (24x24)

CYT3DLABZBQ1AESGS is manufactured using an advanced 40nm process. This MCU integrates Infineon's low-power flash memory and multiple high-performance analog/digital peripherals to create a secure computing platform.

Target application

In-vehicle infotainment systems and human-machine interfaces

Automotive on-board host

Automobile dashboard

High-performance cockpit controller
