The CYT3DLABEBQ1AESGS 32-bit vehicle-grade MCU is specifically designed for use in automotive systems such as dashboards and heads-up displays (HUD). This MCU features a 2D graphics engine, sound processing, an Arm ® Cortex ®-M7 CPU with a running frequency of up to 240MHz (for basic processing), and an Arm Cortex-M0+ CPU for peripheral/security processing. The CYT3DLABEBQ1AESGS product includes embedded peripherals and supports controller local area networks with flexible data rates (CAN FD), local Interconnect networks (LIN), clock extension peripheral interfaces (CXPI), and Ethernet. This device is manufactured using an advanced 40nm process.

Key parameters

Core processors: ARM® Cortex®-M0+, ARM® Cortex®-M7F

Core specification: 32-bit dual-core

Speed: 100MHz, 240MHz

Connection capabilities: CANbus, Ethernet, I2C, LINbus, SPI, UART/USART

Peripheral devices: DMA, I2S, LVD, temperature sensor, WDT

I/O number: 108

Program storage capacity: 4.06MB (4.06M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 48x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

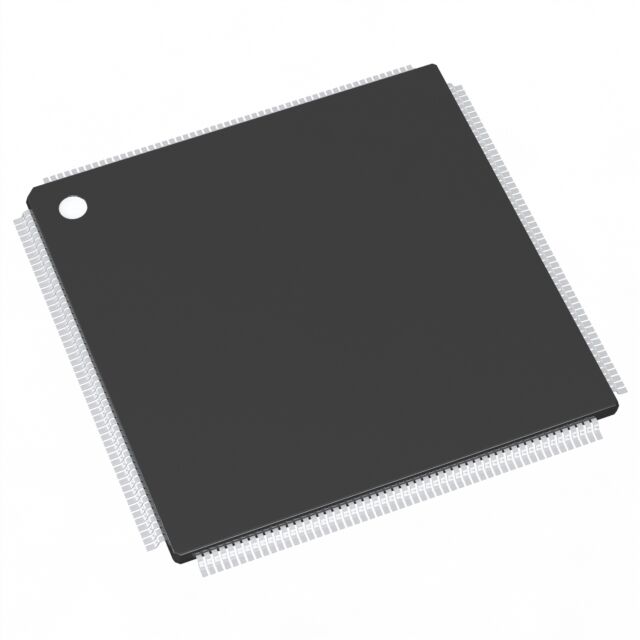

Package: 216-TEQFP (24x24)

The application of CYT3DLABEBQ1AESGS

In-vehicle infotainment systems and human-machine interfaces

Automotive on-board host

Automobile dashboard

High-performance cockpit controller
