The AD5686RBCPZ nanoDAC+™ is a quad-channel, 16-bit, rail-to-rail, voltage-output DAC. powered by a single 2.7 V to 5.5 V supply, the device guarantees monotonicity by design, with less than 0.1 per cent FSR gain error and 1.5 mV out-of-phase error. it is available in a 3 mm × 3 mm LFCSP package.

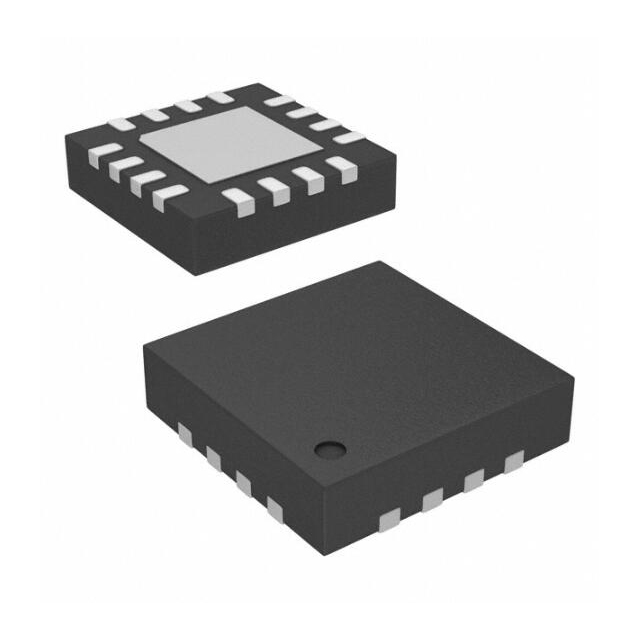

AD5686RBCPZ: Quad, 16-bit nanoDAC+™ Digital-to-Analogue Converter (DAC), LFCSP-16

Model: AD5686RBCPZ

Package: LFCSP-16

Type: 16-bit Digital-to-Analogue Converter (DAC)

AD5686RBCPZ - Product Attributes:

Family: nanoDAC+®

Number of Bits: 16

Number of Digital-to-Analogue Converters: 4

Build Time: 8µs

Output Type: Voltage - Buffered

Differential Outputs: None

Data Interface: SPI, DSP

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±1, ±1 (max)

Architecture: Resistor String DAC

Operating Temperature: -40°C ~ 105°C

Package/Housing: 16-WFQFN Unpadded, CSP

Supplier Device Package: 16-LFCSP (3x3)

Mounting Type: Surface Mount
