The AD5765CSUZ is a four-channel, 16-bit, serial input, bipolar voltage output digital-to-analog converter (DAC) with an operating voltage range of ± 4.75V to ± 5.25V and a nominal full-scale output range of ± 4.096V. The AD5765CSUZ is equipped with an internal output amplifier, a reference voltage buffer, and a proprietary power-on/power-off control circuit. There is also a digital I/O port that can be programmed through a serial interface. Each channel is equipped with a digital offset and gain adjustment register.

The main specifications of AD5765CSUZ are as follows:

Number of digits: 16

Digital-to-analog converter number: 4

Establishment time: 10µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference type: External

Voltage - Power supply, simulation: 5V

Voltage - Power supply, figure: 2.7V to 5.25V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 105°C

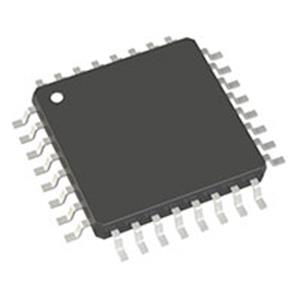

Package/Shell: 32-TQFP

Installation type: Surface mount type

These specifications make the AD5765CSUZ suitable for a wide range of applications that require high-precision analog output, such as industrial control, test and measurement, communication equipment, etc. Its high-precision and stable output characteristics enable it to perform well in systems with strict requirements.
