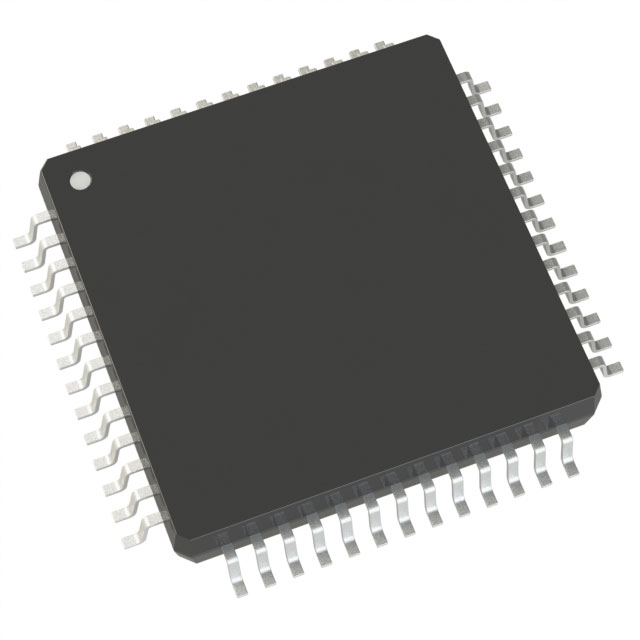

The AD5360BSTZ is a 16-channel, 16-bit buffered voltage output digital-to-analog converter (DAC) in a 52-pin LQFP package ‌. This device is equipped with 16 16-bit Dacs built-in, providing a buffer voltage output with a range four times the reference voltage. The gain and offset of each DAC can be adjusted independently to eliminate error and are divided into two groups of 8 Dacs, the output range of each group can be adjusted independently by one bias DAC ‌.

The main specifications of AD5360BSTZ include:

Number of digits: 16

Digital-to-analog converter number: 16

Establishment time: 30µs

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI, DSP

Reference type: External

Voltage - Power supply, simulation: 8V to 16.5V, -4.5V to 16.5V

Voltage - Power supply, digital: 2.5V to 5.5V

INL/DNL (LSB) : ±4 (maximum), ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 85°C

Package/Shell: 52-LQFP

Installation type: Surface mount type

Application field

The AD5360BSTZ device is suitable for a variety of application scenarios, including instruments, industrial control systems, liquid level Settings in automatic test equipment (ATE), variable optical attenuators (VOA), etc. Its high-speed serial interface and independent regulation function make it excel in systems that require high precision and multi-channel output ‌.
