The AD9743BCPZ is a dual-channel, 10-bit, 250 MSPS digital-to-analog converter with features suitable for direct frequency conversion transmission applications, including gain and offset compensation, and it can seamlessly interface with analog orthogonal modulators such as the ADL5370.

The proprietary dynamic output architecture can shift energy from the fundamental frequency to the image frequency. Even above the Nyquist frequency, the analog output can be synthesized.

Full programming capability is provided through the Serial Peripheral Interface (SPI) port. In addition, some pin programmability features are provided for applications without controllers.

Basic parameters

Digit number: 10

Digital-to-analog converter number: 2

Establishment time: -

Output type: Current - Unbuffered

Differential output: Yes

Data interface: Parallel

Reference types: External, Internal

Voltage - Power supply, simulation: 3.13V to 3.47V

Voltage - Power supply, figures: 1.7V - 1.9V, 3.13V - 3.47V

INL/DNL (LSB) : ±0.1, ±0.05

Architecture: Four-way switch

Operating temperature: -40°C to 85°C

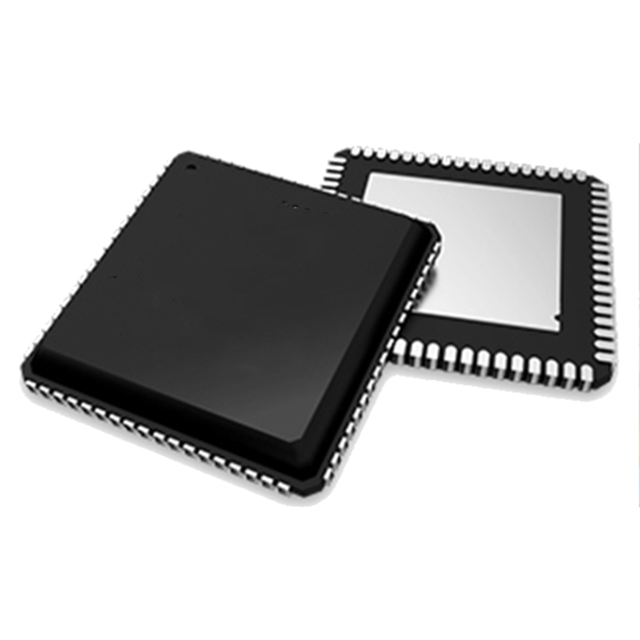

Package/Shell: 72-LFCSP

Installation type: Surface mount type

Application field

The AD9743BCPZ is suitable for a variety of application scenarios that require high-speed and high-precision analog-to-digital conversion, including:

Wireless infrastructure: WCDMA, CDMA2000, TD-SCDMA, WiMAX.

Broadband communication: LMDS/MMDS, point-to-point.

Instruments and meters: RF signal generator, arbitrary waveform generator.
