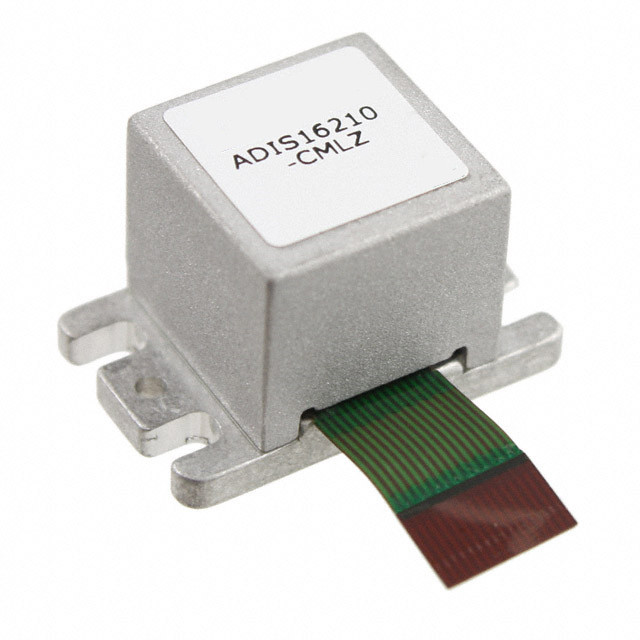

The ADIS16210CMLZ is a digital inclinometer system that can precisely measure pitch and roll angles within an omnidirectional range of ±180°. This device integrates a MEMS three-axis acceleration sensor, signal processing capabilities, addressable user registers for data collection/programming, and a SPI-compatible serial interface. In addition, the production process also includes specific unit calibration to achieve better precision performance. It also offers digital temperature sensors, power measurement functions, as well as configuration control for calibration, sampling rate, filtering, alarm, I/O configuration, and power management within the system.

Technical Specification

Axes: X, Y, Z

Measurement range: ±180°

Sensitivity: -

Bandwidth: 50Hz

Rated voltage: 3V to 3.6V

Output type: Digital

Interface: SPI

Package/Shell: Module

Operating temperature: -40°C to 125°C (TA)

Application field

The ADIS16210CMLZ is widely used in various fields, including:

Platform control, stability and alignment

Tilt detection, inclinometer, leveling

Motion/position measurement

Monitoring/alarm equipment (security, medical and safety)

Navigation
