The AD3530BCBZ is a low-power, 8-channel, 16-bit, buffered voltage output digital-to-analog converter (DAC), featuring software-programmable gain control. It can achieve a full-scale output range of 2.5V or 5V for a reference voltage of 2.5V. The AD3530BCBZ is powered by a single power supply ranging from 2.7V to 5.5V, and its design ensures monotonicity.

Technical parameters

The main parameters of AD3530BCBZ include:

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 12ns

Output type: Voltage-Unbuffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±3, ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 125°C

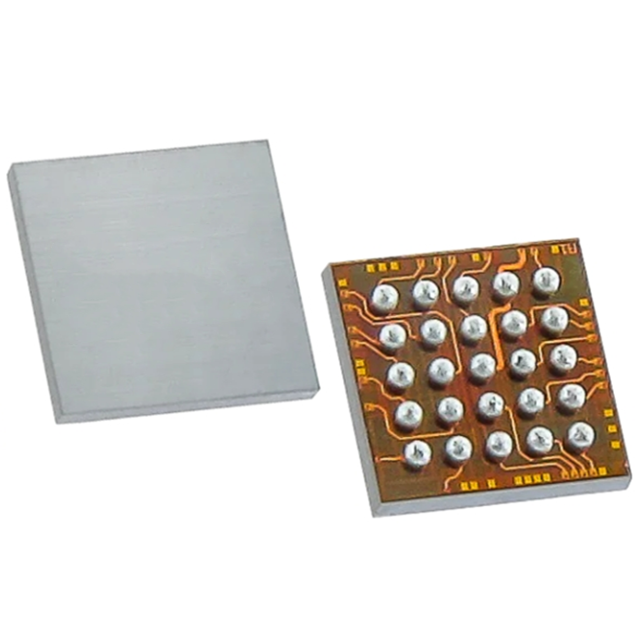

Package/Housing: 25-UFBGA, WLCSP

Supplier device package: 25-WLCSP (2.14x2.19)

Installation type: Surface mount type

Application scenarios

The AD3530BCBZ is suitable for a variety of application scenarios, including:

Optical transceiver

Testing and measurement

Industrial automation

Data acquisition system
