Trade Name:Digital to Analog Converters (DAC)
Brand:ADI
Particular Year:25+

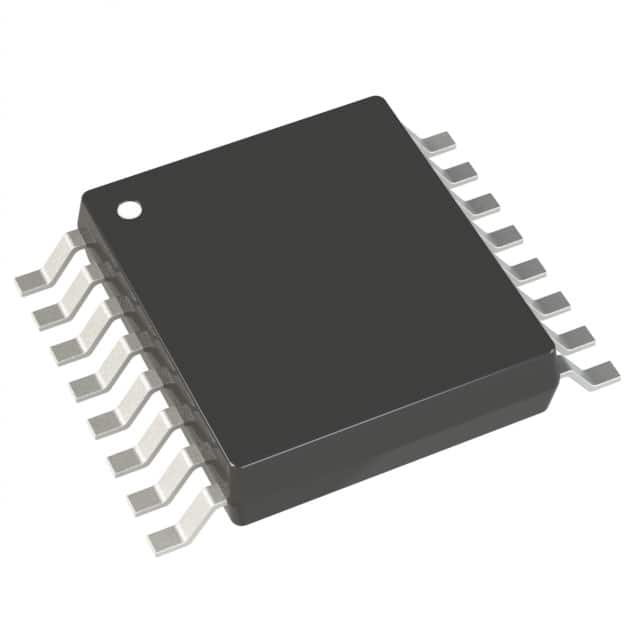

Package:TSSOP-16
Delivery Date:New and original
Stock: 3000pcs
The AD5648BRUZ-2 is a low-power, eight-channel, 14-bit, buffered voltage output DAC, powered by a single 2.7V to 5.5V power supply, and monotonicity is guaranteed through design. The AD5648BRUZ-2 is equipped with a 2.5V, 5ppm /°C reference voltage source, and the full-scale output range can reach 5V. When powered on, the on-chip reference voltage source is turned off, so the external reference voltage can be used. The internal reference voltage source is enabled through software writing.
Key parameters
Digit number: 14
Digital-to-analog converter number: 8
Establishment time: 7µs
Output type: Voltage-Buffered
Differential output: None
Data interface: SPI, DSP
Reference types: External, Internal
Voltage - Power supply, simulation: 2.7V to 5.5V
Voltage - Power supply, digital: 2.7V to 5.5V
INL/DNL (LSB) : ±2, ±0.5 (maximum)
Architecture: Resistor series DAC
Operating temperature: -40°C to 105°C
Package/Shell: 16-TSSOP
Installation type: Surface mount type
Application scenarios
The AD5648BRUZ-2 is applicable to a variety of application scenarios, including:
Optical transceiver
Power amplifier control
Data acquisition system
Digital gain and offset voltage adjustment
