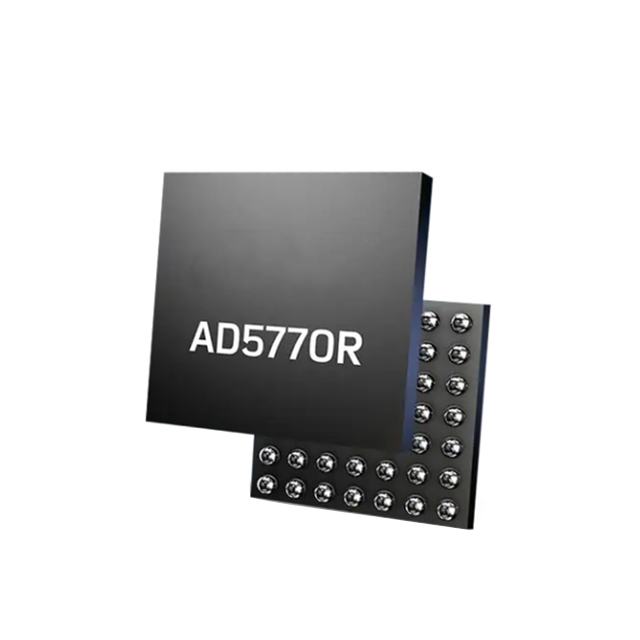

The AD5770RBCBZ is a 6-channel 14-bit resolution low-noise programmable current output digital-to-analog converter (DAC) suitable for optoelectronic control applications. This device includes a 1.25V on-chip reference voltage source, a 2.5k Ω precision resistor for generating the reference current, die temperature, output monitoring function, fault alarm and reset function.

The main features of AD5770RBCBZ are as follows:

6-channel current output DAC

14-bit resolution

Programmable output current range

Channel: 00 mA to 300 mA, -60 mA to +300 mA, -60 mA to 0 mA

Channel 1:0 mA to 140 mA, 0 mA to 250 mA

Channel 2:0 mA to 55 mA, 0 mA to 150 mA

Channel 3, Channel 4, Channel 5:0 mA to 45 mA, 0 mA to 100 mA

The output range of all current sources is reduced in proportion to up to 0.5×

1.25V on-chip reference voltage source

Integrated precision reference voltage source resistor

SPI interface

Reset function

Output current monitor

Constant current output voltage monitor

Die temperature monitor

Integrated thermal shutdown

49 balls, 4 mm × 4 mm WLCSP package

Operating temperature: -40 °C to +105°C

In addition, the AD5770RBCBZ is suitable for applications that require high-precision current control, such as photoelectric control, LED drivers, programmable current sources, and current mode bias, etc. ‌.
