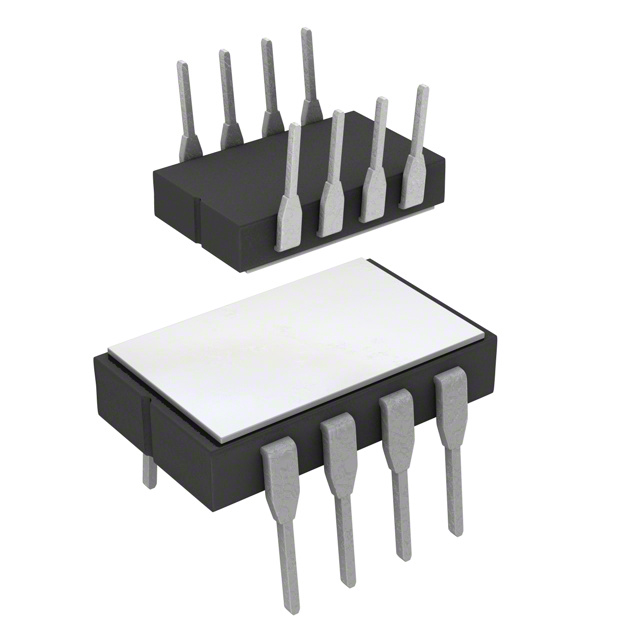

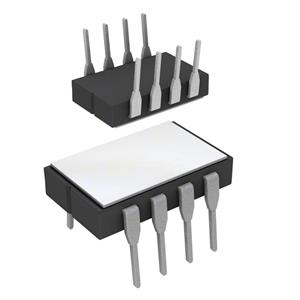

For picture reference, please see the specifications
< >

Commodity Model:ADXL206HDZ

Trade Name:Accelerometer

Brand:ADI

Particular Year:25+

Package:SBDIP-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADXL206HDZ
Package
SBDIP-8
Describe
Precision, ± 5g, dual-axis, high-temperature iMEMS accelerometer

Product Description

The ADXL206HDZ is a precise, low-power, complete dual-axis iMEMS® accelerometer, suitable for high-temperature environments. Its main features include:

Achieve high-performance, dual-axis accelerometers on a single-chip IC

Ambient temperature range: -40 °C to +175°C

Long service life: Guaranteed for 1000 hours at TA = 175°C

13mm × 8mm × 2mm side brazed ceramic dual in-line package

Resolution: 1 mg (60 Hz)

Low power consumption: 700 µA (VS = 5 V, typical value)

High zero g offset repeatability

High sensitivity accuracy

Adjust the bandwidth using a single capacitor

Single power supply

Comply with the RoHS standard

Compatible with tin/lead and lead-free soldering processes


The ADXL206HDZ accelerometer integrates the sensor and the signal-conditioned voltage output on a single chip IC. The full-scale acceleration measurement range is ±5 g, which can measure both dynamic acceleration (such as vibration) and static acceleration (such as gravity).


The typical background noise is 110 μg/√Hz. Therefore, in tilt detection applications, signals below 1 mg (0.06° tilt) can be analyzed using a narrow bandwidth (<60 Hz).


The user selects the bandwidth of ADXL206HDZ by using the capacitors CX and CY on the XOUT and YOUT pins respectively. According to the application requirements, the bandwidth within the range of 0.5Hz to 2.5kHz can be selected.
