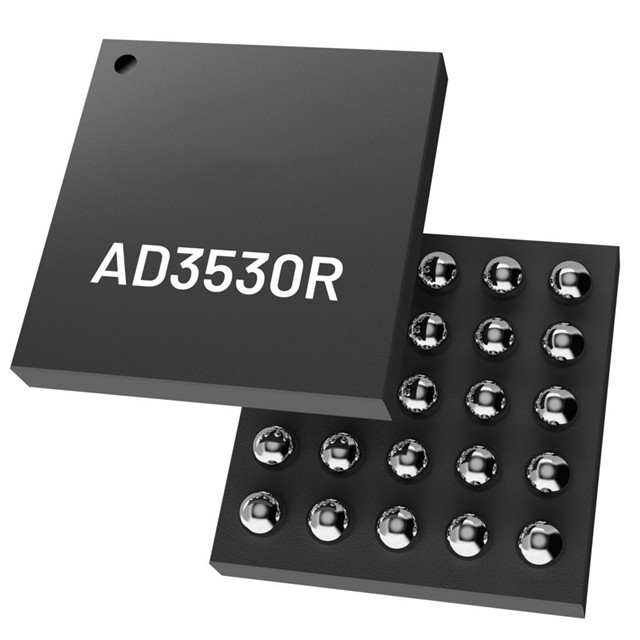

The AD3530RBCBZ is a low-power, 8-channel, 16-bit, buffered voltage output digital-to-analog converter (DAC), featuring software-programmable gain control. It can achieve a full-scale output range of 2.5V or 5V for a reference voltage of 2.5V. This device is powered by a single power supply ranging from 2.7V to 5.5V and is designed to ensure monotonicity. The AD3530RBCBZ also provides a 2.5V, 5ppm/°C internal reference voltage source (which is disabled by default).

Basic parameters

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 12µs

Output type: Voltage-Unbuffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±3, ±1 (maximum)

Architecture: Resistor series DAC

Operating temperature: -40°C to 125°C

Package/Shell: 25-WLCSP

Installation type: Surface mount type

Application field

The AD3530RBCBZ is suitable for application fields that require high precision and low power consumption, including

Optical transceiver

Testing and measurement

Industrial automation

Data acquisition system
