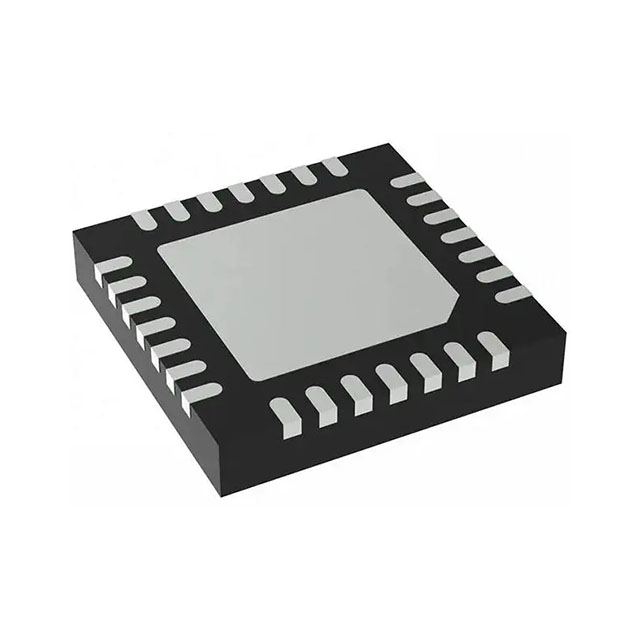

For picture reference, please see the specifications
< >

Commodity Model:ADPL76030EUFD

Trade Name:Switching Regulators

Brand:ADI

Particular Year:24+

Package:28-QFN

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADPL76030EUFD
Package
28-QFN
Describe
55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Product Description

ADPL76030EUFD is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, and input or output current from an input voltage above, below, or equal to the output voltage.


Features

4-Switch Single Inductor Architecture Allows VIN

Above, Below, or Equal to VOUT

Up to 95% Efficiency at 1.4 MHz

Proprietary Peak-Buck, Peak-Boost Current-Mode

Wide VIN Range: 4 V to 55 V

±2% Output Voltage Accuracy: 1 V ≤ VOUT ≤ 55 V

±3% Input or Output Current Accuracy with Monitor

Spread Spectrum Frequency Modulation for Low EMI

No Top MOSFET Refresh Noise in Buck or Boost

Adjustable and Synchronizable: 600 kHz to 1.4 MHz

VOUT Disconnected from VIN During Shutdown


APPLICATIONS

Automotive, Industrial, Telecom Systems

High Frequency, Battery-Powered System
