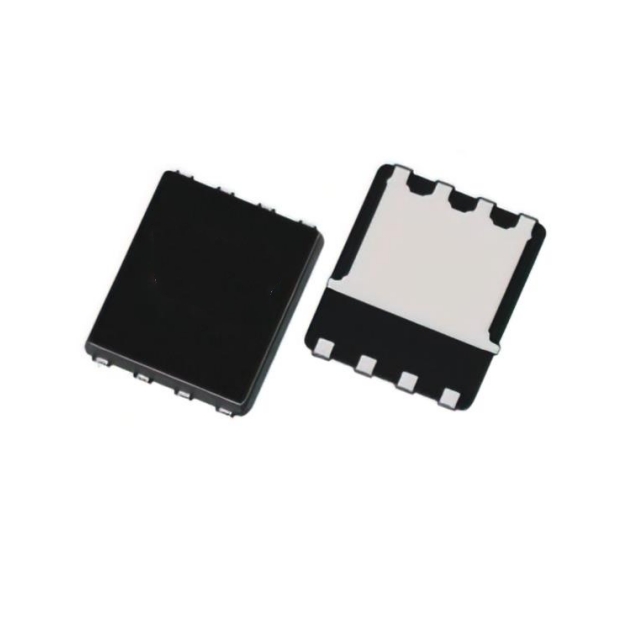

The BSC152N15LS5 features ultra-low RDS(on) of 15.2/20 mOhm (VGS = 10 V/4.5 V) and ultra-low Qg of 12.2 nC (VGS = 4.5 V) in an industry-standard SuperSO8 package for optimal thermal management of small, lightweight USB-PD EPR charger and adapter applications.

Product Attributes

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 150 V

Current at 25°C - Continuous Drain (Id): 8.9A (Ta), 55A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V

On-resistance (max) at different Id, Vgs: 15.2 mOhm @ 29A, 10V

Vgs(th) at different Id (max): 2.3V @ 60µA

Gate Charge (Qg) at Vgs (max): 29 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 2000 pF @ 75 V

Power Dissipation (Max): 2.5W (Ta), 96W (Tc)

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-TDSON-8

Package/Housing: 8-PowerTDFN
