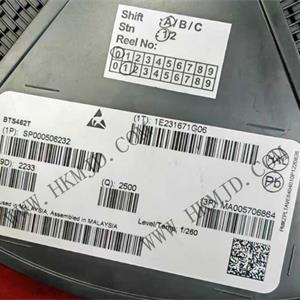

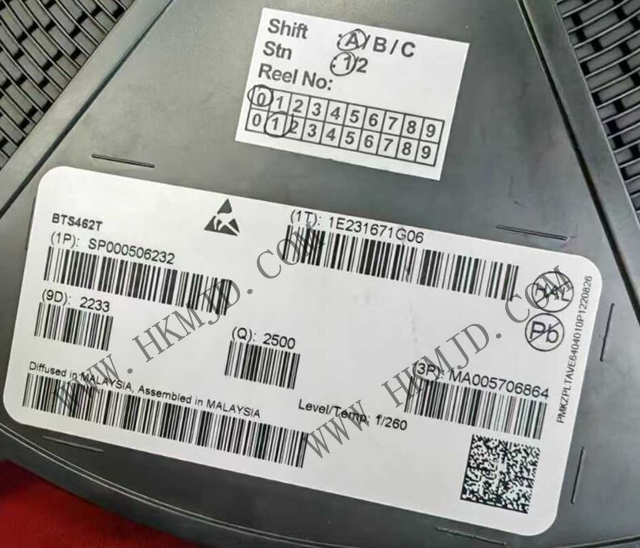

The BTS462T is a smart high-side power switch launched by Infineon, belonging to the miniPROFET® series, using a TO-252-5 (DPak) package, and suitable for load drive applications in automotive electronics, industrial control, consumer electronics, and other fields. The device integrates an N-channel MOSFET, supports a wide input voltage range of 5V to 34V, provides a continuous output current of 3.5A, and features multiple protection functions such as overcurrent protection, over-temperature shutdown, and overvoltage protection, ensuring safe system operation.

Specifications — BTS462T

Input voltage range: 5V to 34V

Output current (continuous): 3.5A

Peak output current: 14A (short-term)

On-resistance (RDS(on)): 70mΩ (typical)

Switching type: High-side

Interface control: Non-inverting logic input (on/off control)

Protection features: Overcurrent, over-temperature, overvoltage, ESD (±15kV HBM)

Operating temperature: -40°C to +150°C (TJ)

Package: TO-252-5 (DPak, 5-pin)

Features — BTS462T

Overload protection

Current limiting

Short-circuit protection

Thermal shutdown with restart function

Overvoltage protection (including load dump)

Undervoltage shutdown

Rapid demagnetisation of inductive loads

Reverse battery protection with external resistor

Ground loss and Vbb loss protection

CMOS-compatible input

Electrostatic discharge (ESD) protection

Ultra-low standby current

Green product (RoHS compliant)

Advantages — BTS462T

Negative voltage clamping on the output side for inductive loads

Current limiting

Ultra-low standby current

Thermal shutdown with restart function

ESD protection

Potential applications — BTS462T

Body control module

Seat control

Distributed rear-view mirror module

Distributed lighting module

Start-stop transmission

Hybrid vehicle main battery pack

In-vehicle entertainment system
