The ADL8105ACPZN is a gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC), high electron mobility pseudomorphic integrated circuit (MMIC), pseudo amorphous high electron mobility transistor (pHEMT), and low-noise broadband amplifier that operates from 5 GHz to 20 GHz. it provides a typical gain of 27 dB over 12 GHz to 17 GHz, typical gain of 1.8 dB, and typical output third order intercept (OIP3) of 30.5 dBm saturated output power (PSAT) over 12 GHz to 17 GHz. Provides 27 dB typical gain over the 12 GHz to 17 GHz frequency range, 1.8 dB typical gain, and typical output third-order intercept (OIP3) of 30.5 dBm saturated output power (PSAT) of up to 20.5 dBm over the 12 GHz to 17 GHz range Power dissipation can be achieved by lowering both the OIP3 and the output power (POUT).

Characteristics

● Single positive supply (self-biased)

● Gain: 27 dB (typical at 12 GHz to 17 GHz)

● OP1dB: 18dB (typical at 12GHz to 17GHz)

● OIP3: 30.5dBm (typical from 12GHz to 17GHz)

● Noise figure: 1.8dB (typical from 12GHz to 17GHz)

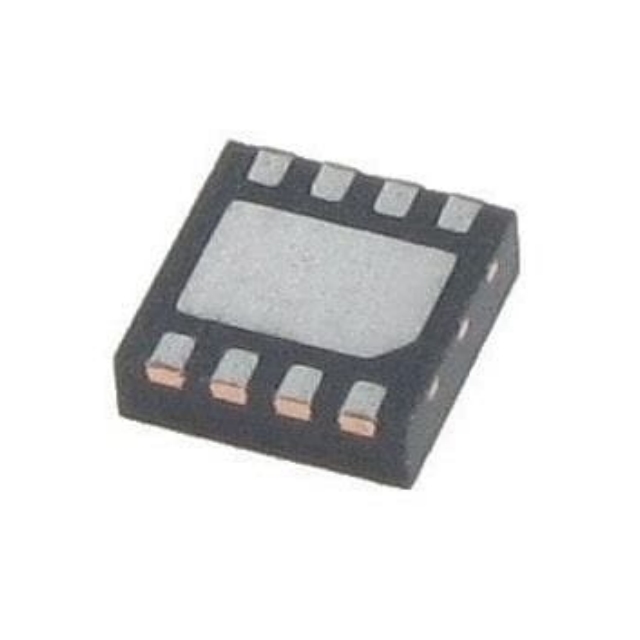

● RoHS-compliant 2mm x 2mm, 8-pin LFCSP package

Applications

● Telecommunications

● Satellite communications

● Military radar

● Weather radar

● Electronic Warfare

● Instrumentation
