The LT3761AEMSE is a DC/DC controller designed to be used as a constant current source and constant voltage regulator. It has a programmable internal PWM dimming signal. Ideal for driving high current LEDs, it also features battery and supercapacitor charging. The fixed-frequency, current-mode architecture provides stable operation over a wide range of supply and output voltages. Voltage feedback pins can be used as inputs for multiple LED protection functions and also allow the converter to operate as a constant voltage source. The frequency adjustment pin allows the user to program the frequency from 100kHz to 1MHz to optimise efficiency, performance or external component size.

Product Characteristics

Type: DC Controller

Topology: Flyback, SEPIC, Buck, Boost

Internal Switch: None

Number of outputs: 1

Supply voltage (min): 4,5 В

Voltage - supply (max): 60 В

Frequency: 100 kHz ~ 1 MHz

Dimming: Analogue, PWM

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

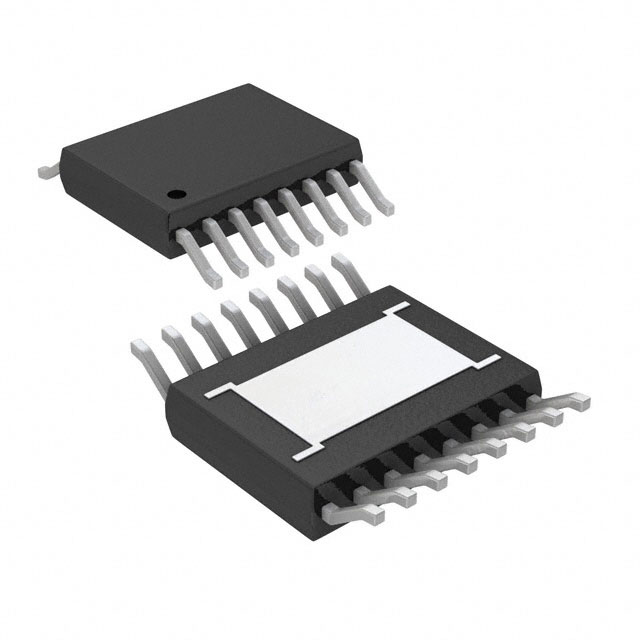

Package/case: 16-TFSOP (0.118 in, 3.00 mm wide) exposed pads

Scope of delivery: 16-MSOP-EP

Applications

● High voltage LED strings with ground >100V reference current detection

● Grounded anode LEDs

● Battery and supercapacitor chargers

● Accurate current limiting regulators
