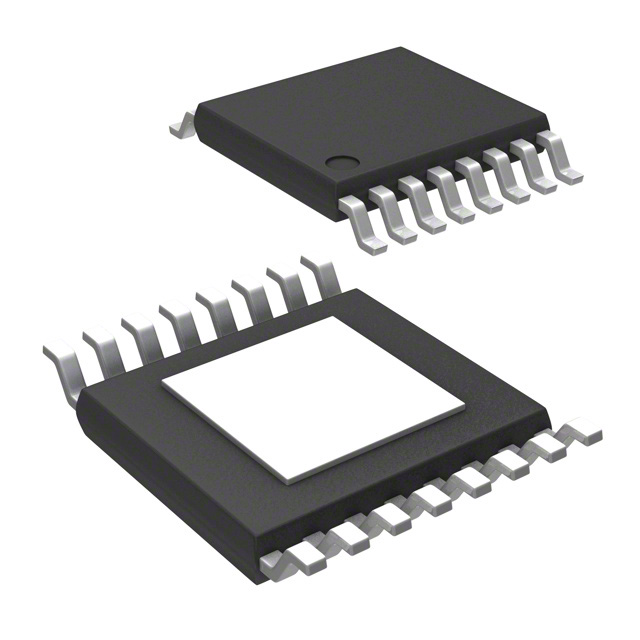

For picture reference, please see the specifications
< >

Commodity Model:LT3474EFE-1

Trade Name:LT3474EFE-1

Data Manual:LT3474EFE-1.pdf

Brand:ADI

Particular Year:23+

Package:16-TSSOP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3474EFE-1
Package
16-TSSOP
Describe
LED Driver IC 1 Output DC DC Regulator Buck PWM Dimming 1A 16-TSSOP-EP

Product Description

The LT3474EFE-1 is a fixed frequency step-down DC/DC converter designed to be used as a constant current source. An internal sense resistor monitors the output current for precise current regulation, ideal for driving high-current LEDs. High output current accuracy maintains high output current accuracy over a wide current range of 35mA to 1A, enabling a wide dimming range. The unique PWM circuitry enables a 400:1 dimming range, avoiding the colour shift normally associated with LED current dimming.


Product Attributes

Type: DC Regulator

Topology: Buck

Internal Switch: Yes

Number of outputs: 1

Supply voltage (minimum): 3.5 В 3,5 В

Voltage - supply (max): 36 В

Current - Output/Channel: 1A

Frequency: 200kHz ~ 2MHz

Brightness Control: PWM

Application: Backlight

Operating Temperature: -40°C ~ 85°C (TA)

Rating: Automotive Grade

Mounting Type: Surface Mount

Package/Case: 16-TSSOP (0.173", 4.40 mm wide) with open area

Scope of delivery: 16-TSSOP-EP


Applications

● Automotive and aerospace lighting

● Architectural detail lighting

● Display backlighting

● Constant current sources

Associated Products

Model

Brand

Package

Quantity

Describe

TPS92402MRRVR

TI

VQFN-36

3000

An 8-channel, 2.5A LED point controller for high-precision dimming control via SPI interface

TPS92642QPWPRQ1

TI

HTSSOP-16

3000

Synchronous step-down infrared LED driver for automobiles

TPS92543QPKDRQ1

TI

HTQFP-48

3000

Automotive-grade LED driver with 65V synchronous boost controller

NCV78343DQ0R2G

ON

SSOP-36

3000

LED driver IC, a serial pixel controller for automotive (front) lighting

NCV78514PA0R2G

ON

TSSOP-16

3000

60V, 1.5A intelligent single-channel H-bridge automotive LED driver

TLD1120EL

INFINEON

PG-SSOP-14

5500

360mA, LITIX™ - Automotive LED Driver, PG-SSOP-14

LT3763EFE

ADI

TSSOP-28

3000

60V high current step-down LED driver controller

LT3795EFE

ADI

TSSOP-28

3000

110V LED controller with spread spectrum frequency modulation function

LT3744EUHE

ADI

QFN-36

3000

High-current, synchronous step-down LED driver

LT3743EUFD

ADI

QFN-28

3000

High-current, synchronous step-down LED driver with three-state control function
