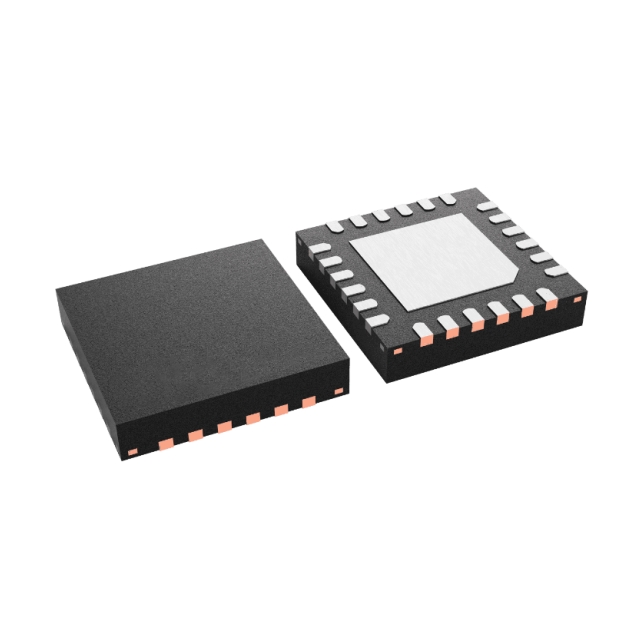

The LP5866TRKPR is a high current, high performance LED matrix driver. The device integrates 18 constant switching MOSFETs. 6 MOSFETs are integrated and can be used for up to 108 LED dots or 36 RGB LEDs, supporting both analogue dimming and PWM dimming. For analogue dimming, each LED dot can be adjusted in 256 steps. For PWM dimming, the integrated 8- or 16-bit configurable PWM generator provides smooth, noise-free dimming control.

Product Characteristics

Type: Linear

Topology: DC

Internal Switch: Yes

Number of Outputs: 18

Supply voltage (min.): 2,7 В 2,7 В

Supply voltage (max.): 5,5 В 5,5 В

Voltage - Outputs: 2.7V ~ 5.5V

Current - Output/Channel: 100mA

Frequency: 31,2MHz

Brightness control: Analogue, I²C, PWM, SPI

Applications: Backlight, Camera Flash

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/case: 40-VFQFN (with open area)

Delivery includes: 40-VFQFN (5x5)

Applications

● LED animation and indication for

● Major appliances and smart appliances

● Global RGB keyboard backlighting

● Outdoor keypad backlighting

● IR modules for video surveillance and IP cameras
