The ADS131M06QPBSRQ1 is a six-channel, synchronous sampling, 24-bit Delta-σ analog-to-digital converter (ADC). The wide dynamic range, low power consumption and power measurement specific characteristics make the device ideal for power metering, power metering and circuit breaker applications.

The ADC input can be connected directly to a resistive voltage divider network or a power transformer to measure voltage, or to a current transformer or Rogowski coil to measure current. Individual ADC channels can be configured independently based on sensor input. Low noise, programmable gain amplifiers (PGA) provide gains from 1 to 128 to amplify low level signals.

Product specification

Number of digits: 24

Sampling rate (per second) : 32k

Input number: 6

Input type: differential, single - ended

Data interface: SPI

Configuration: ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 6

Architecture: Integration triangle

Reference type: external, internal

Voltage - power supply, simulation: 2.4V ~ 3.6V, 2.7V ~ 3.6V

Voltage - power supply, numbers: 1.65V ~ 2V, 2.7V ~ 3.6V

Features: Internal oscillator, PGA, synchronous sampling, temperature sensor

Operating temperature: -40°C ~ 125°C (TA)

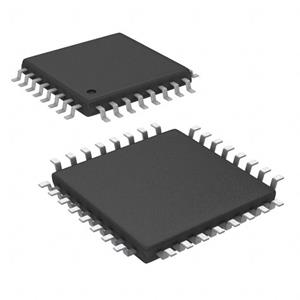

Package/case: 32-TQFP

Supplier Device Package: 32-TQFP (5x5)

Mounting type: surface mount type
