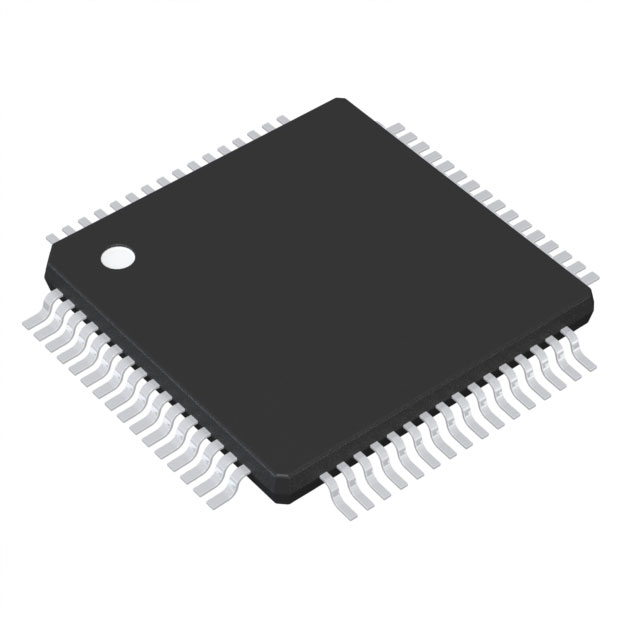

ADS1296IPAG: 6-Channel, 24-Bit Analogue-to-Digital Converter (ADC) with Integrated ECG Front-End

Model: ADS1296IPAG

Package: TQFP-64

Type: 24-Bit Analogue-to-Digital Converter (ADC)

ADS1296IPAG Product Features:

8 low-noise programmable gain amplifiers (PGAs) and 8 high-resolution analogue-to-digital converters (ADCs)

Low power consumption: 0.75mW per channel

Input introduced noise: 4µVPP (150Hz bandwidth (BW), G = 6)

Input bias current: 200pA

Data rate: 250SPS to 32kSPS

Common mode rejection ratio ( CMRR): -115dB

Programmable Gain: 1, 2, 3, 4, 6, 8, or 12

Unipolar or Bipolar Power Supplies:

AVDD = 2.7V to 5.25V

DVDD = 1.65V to 3.6V

Built-in Right Leg Driver Amplifier, Lead Disconnect Detection, Wilson Centre Termination, Pacing Detection, Test Signals

Integrated Respiratory Impedance Measurement

Digital Pacing Detection functions

Built-in oscillator and reference

SPI™ compatible serial port
