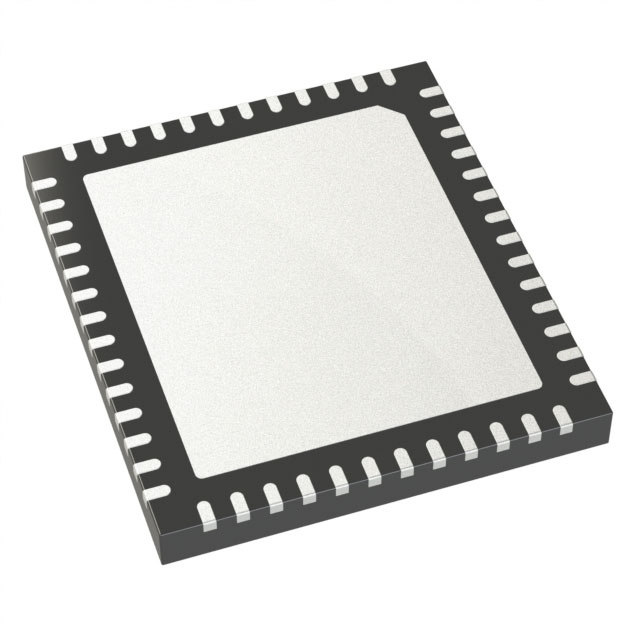

LTC2320IUKG-14: 8-Channel, 14-Bit Analog to Digital Converter (ADC) with Synchronous Sampling, QFN-52

Here are the product details for the analog-to-digital converter LTC2320IUKG-14:

Model: LTC2320IUKG-14

Package: QFN-52

Type: Synchronous Sampling Analog-to-Digital Converter (ADC)

Overview:

The LTC2320IUKG-14 is a low-noise, high-speed, 8-channel, 14-bit Signed Bit Successive Approximation Register (SAR) ADC with differential inputs and a wide input common-mode range. The LTC2320IUKG-14 operates from a single 3.3V or 5V power supply, and has a differential input range of 8VP-P, which makes it ideally suited for use in applications that require wide dynamic range and high common-mode rejection. The LTC2320IUKG-14 achieves ±1LSB INL typical, no loss of code at 14 bits, and 81dB SNR.

LTC2320IUKG-14 Specifications:

Number of Bits: 14

Sampling Rate (per second): 1.5M

Number of Inputs: 8

Input Type: Differential

Data Interfaces: LVDS - Parallel, SPI

Configuration: S/H-MUX-ADC

Ratio - S/H:ADC: 2:1

Number of A/D Converters: 4

Architecture: SAR

Reference Types: External, Internal

Voltage - Supply, Analog: 3.13 V ~ 3.47V, 5V

Voltage - Powered, Digital: 3.13V ~ 3.47V, 5V

Characteristics: Synchronous Sampling

Operating Temperature: -40°C ~ 85°C

Package/Case: 52-WFQFN Unpadded

Supplier Device Package: 52-QFN (7x8)

Mounting Type: Surface Mount
