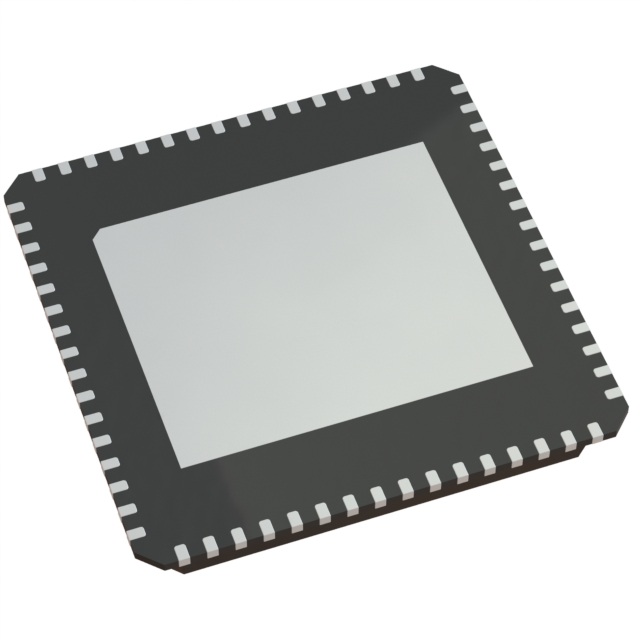

ADC3649IRTD: 500MSPS, 14-bit Dual Analogue to Digital Converter (ADC), VQFNP-64

Model: ADC3649IRTD

Package: VQFNP-64

Type: 14-bit Analogue to Digital Converter (ADC)

ADC3649IRTD Product Features:

14-bit, dual-channel 500MSPS ADC

Noise Spectral Density: -158.5dBFS/Hz

Thermal Noise: 74.5dBFS

Single-Core (Non-Interleaved) ADC Architecture

Power Dissipation: 300mW/channel

Aperture Jitter: 75fs

Buffered Analogue Inputs

Programmable 100Ω and 200Ω terminations

Full Scale Input: 2Vpp

Full Power input bandwidth (-3dB): 1.4GHz

Spectrum performance (fIN = 70MHz, -1dBFS):

SNR: 73.8dBFS

SFDR HD2,3: 84dBc

SFDR worst-case burr: 90dBFS

Digital Downconverters (DDCs)

Up to four independent DDCs

Complex and real number extraction

Extraction rates: /2, /4 to /32768 Extraction

48-bit NCO phase coherent frequency hopping

DDR, serial LVDS interface

14-bit parallel DDR LVDS for DDC bypass

16-bit serial LVDS for extraction

32-bit output option for high extraction rates
