The AD7193BCPZ is a low-noise complete analogue front-end for high-precision measurement applications. It integrates a low-noise, 24-bit sigma-delta analogue-to-digital converter (ADC). The on-chip low-noise gain stage means that small signals can be fed directly into the ADC. the AD7193BCPZ can be configured with four differential inputs or eight pseudo-differential inputs. An on-chip channel sequencer enables multiple channels simultaneously, and the AD7193BCPZ performs conversions on each enabled channel in sequence, simplifying communication with the device.

Product Details:

Model: AD7193BCPZ

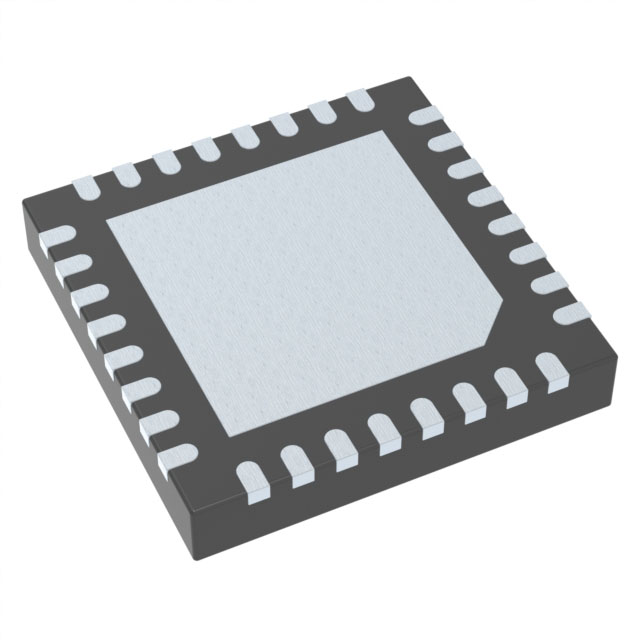

Package: LFCSP-32

Type: Analog-to-Digital Converter (ADC)

Number of Bits: 24

Number of Inputs: 4, 8

Input Types: Differential, Pseudo Differential

Data Interface: SPI, DSP

Configuration: MUX-PGA-ADC

Number of A/D Converters: 1

Architecture: Delta-Integral

Reference Type: External

Voltage - supplied, analogue: 3V ~ 5.25V

Voltage - supplied, digital: 2.7V ~ 5.25V

Characteristics: PGA

Operating Temperature: -40°C ~ 105°C

Package/Case: 32-WFQFN Unpadded, CSP

Vendor Device Packaging: 32-LFCSP (5x5)

Mounting Type: Surface Mount Mounting Type: Surface Mount

AD7193BCPZ Product Features:

4 differential/8 pseudo-differential input channels

RMS noise: 11 nV (4.7 Hz, G = 128)

15.5-bit noiseless resolution (2.4 kHz, G = 128)

Up to 22-bit noiseless resolution (G = 1)

Offset drift: ±5 nV/°C

Gain drift: ±1 ppm/°C

Rated time-drift characteristics

Auto Channel Sequencer

Programmable gain (1 to 128)

Output data rate: 4.7 Hz to 4.8 kHz

Internal or external clock

50 Hz/60 Hz simultaneous rejection

4 general-purpose digital outputs

Power supply

AVDD: 3 V to 5.25 V

DVDD: 2.7 V to 5.25 V

Current: 4.65 mA

Temperature range: -40°C to +105°C

28-pin TSSOP and 32-pin pin LFCSP packages

Interface

Three-wire serial interface

SPI, QSPI™, MICROWIRE™, and DSP compatible

Schmitt triggering within SCLK pin
