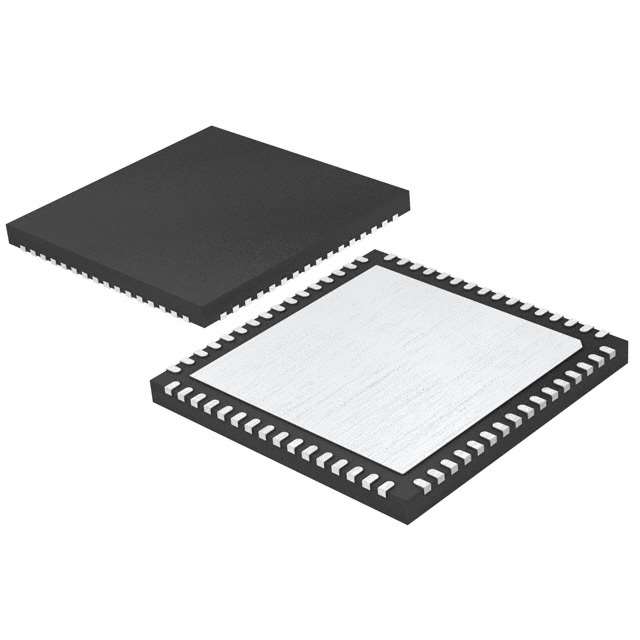

ADS4249IRGC: Dual, 250MSPS, 14-bit Analog-to-Digital Converter (ADC), VQFN-64

Basic Information:

Model: ADS4249IRGC

Package: VQFN-64

Type: 14-bit Analog-to-Digital Converter (ADC)

ADS4249IRGC Product Features:

Maximum Sample Rate: 250MSPS

1.8V single-supply power supply with ultra-low power consumption:

Total power consumption of 560mW at 250MSPS

High Dynamic Performance:

Spurious Free Dynamic Range (SFDR) 80dBc at 170MHz

Signal-to-Noise Ratio (SNR) 71.7dBFS at 170MHz

Crosstalk: >90dB at 185MHz

Programmable gain up to 6dB for trade-offs

SNR/SFDR performance

DC offset correction

Output Interface Options:

1.8V Parallel CMOS Interface

Double Data Rate (DDR) Low Voltage Dynamic Signaling (LVDS) with Programmable Swing Support:

Standard Swing: 350mV

Low Swing: 200mV

Low Input Clock Amplitude down to 200mVPP is supported. 200mVPP

The ADS4249IRGC is a dual channel, 12-bit and 14-bit analogue-to-digital converter (ADC). The device has a gain option that can be used to improve SFDR performance over a small full-scale input range. The device also includes a DC offset correction loop to remove ADC offset, and both the DDR LVDS and parallel CMOS digital output interfaces are available in a compact VQFN-64 package.
