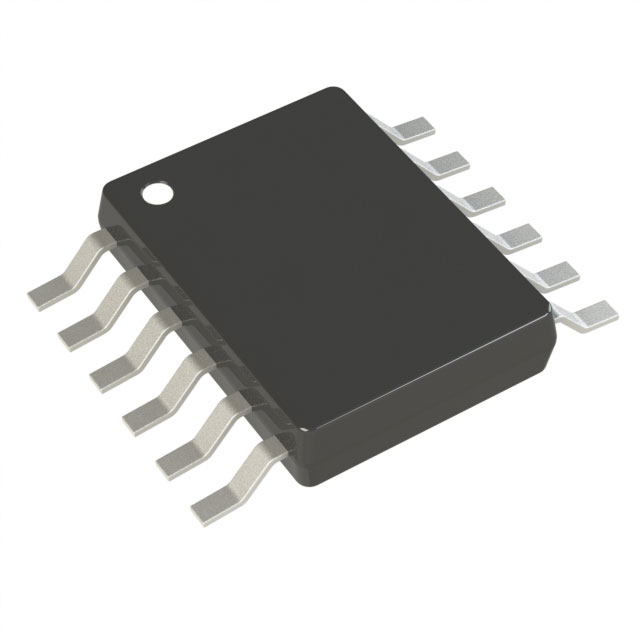

The LT3909EMSE is a 2-string × 60mA LED driver with a fixed 2MHz step-up DC/DC converter capable of driving LEDs up to 36 V. Each LED string contains a precision high voltage side current source with ±2% current matching. The output voltage adapts to changes in LED VF for optimal efficiency. Maximum LED currents can range from 10mA to 60mA. LED brightness can be reduced by analogue dimming (up to 10:1) or PWM dimming (up to 40:1).

Product Attributes

Type: DC Regulator

Topology: Boost

Internal Switch: Yes

Number of Outputs: 2

Voltage - supply (min): 2.9 V

Voltage - Supply (Max): 40 V

Voltage - Output: 40 V

Current - Output/Channel: 50 mA

Frequency: 2 MHz

Dimming: Analogue, PWM

Application: Automotive Grade

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/case: 12-TSSOP (0.118", 3.00 mm wide) with open pads

Delivery includes: 12-MSOP-EP

Applications

● Pocket PCs, handheld computers

● GPS receivers

● Automotive displays

● High-contrast dashboards
