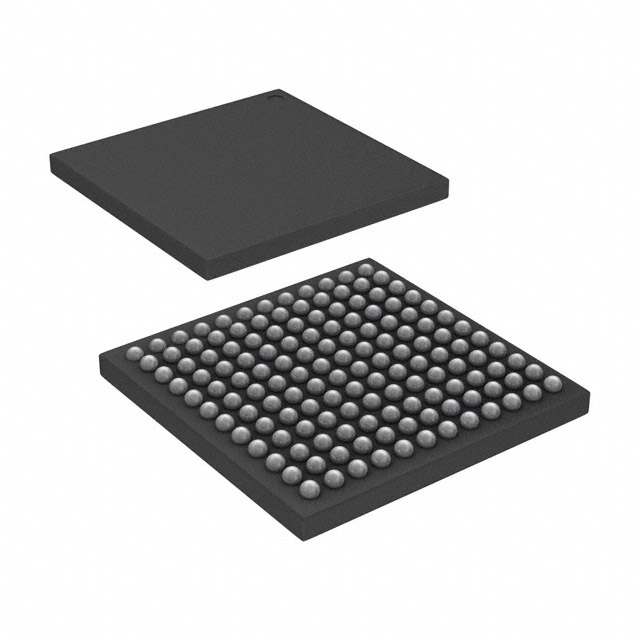

For picture reference, please see the specifications
< >

Commodity Model:AD9273BBCZ-50

Trade Name:Analogue To Digital Converters - ADC

Brand:ADI

Particular Year:25+

Package:CSPBGA-144

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9273BBCZ-50
Package
CSPBGA-144
Describe
Eight-channel, 50 MSPS, 12-bit analog-to-digital converter (ADC)

Product Description

The AD9273BBCZ-50 is a 12-bit 50 MSPS analog-to-digital converter (ADC), specifically designed for low-cost, low-power, small-sized and easy-to-use applications. It integrates an eight-channel variable gain amplifier (VGA), a low-noise preamplifier (LNA), an anti-aliasing filter (AAF), and a 50 MSPS 12-bit analog-to-digital converter (ADC).


Each channel features a variable gain range of 42 dB, a fully differential signal link, an active input preamplifier terminal, a maximum gain of 52dB, and an ADC with a conversion rate as high as 50 MSPS. The channel is specifically optimized for dynamic range and low power consumption, making it suitable for applications with high requirements for package size.


The AD9273BBCZ-50 has the following technical parameters:

Resolution: 12 bits

Number of channels: 8 channels

Interface type: SPI

Sampling ratio: 50 MS/s

Input type: Single-Ended

Structure: Pipeline

Analog power supply voltage: 1.8V, 3V

Digital power supply voltage: 1.8V

SNR - Signal-to-noise Ratio: 63.5 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging/Cabinet: CSPBGA-144


Typical applications

Medical imaging/ultrasound

Automobile radar
