The LT3519IMS-2 are fixed frequency step-up DC/DC converters designed to drive LEDs, they have a built-in 45V, 750mA low voltage side switch and Schottky diode. The combination of traditional voltage feedback and unique rail-to-rail current sense feedback allows these converters to operate as constant voltage or constant current sources. The devices feature rail-to-rail LED current sense pins to provide maximum flexibility in selecting the converter configuration to drive the LEDs, which can be programmed externally via a sense resistor. An external PWM provides PWM dimming up to 3000:1 and a CTRL input provides analogue dimming.

Product Properties

Type: DC Regulator

Topology SEPIC, Buck, Boost

Internal Switching Yes

Number of Outputs 1

Voltage - Supply (minimum): 3V

Voltage - Supply (Max): 30V

Current - Outputs/Channel 750 mA (Switched)

Frequency: 2.2MHz

Dimming Analogue, PWM

Applications: Lighting Lighting

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type Surface Mount

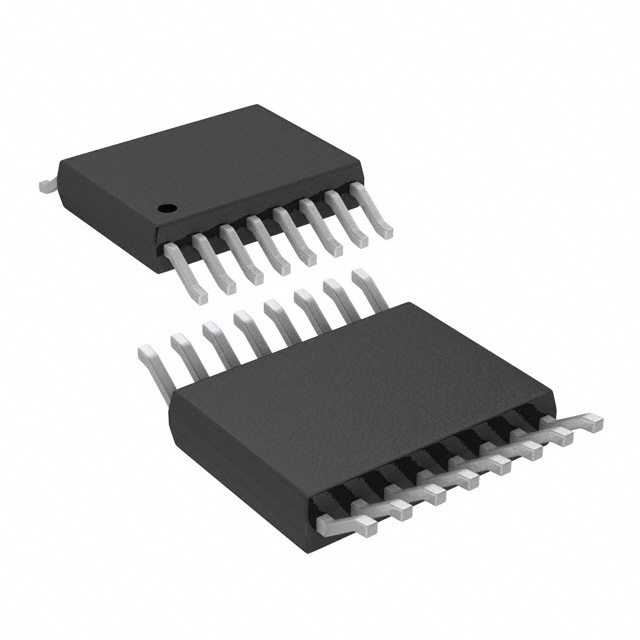

Package/Housing 16-TFSOP (0.118 inches, 3.00 mm wide)

Supplier Device Package: 16-MSOP

Applications

● Automotive

● Industrial

● Constant-current sources

● Current Limit Constant Voltage Sources
