The ADS1235IRHBR is a precision 7200SPS Delta-σ analog-to-digital converter (ADC) with an integrated programmable gain amplifier (PGA). This device also includes diagnostic features such as PGA overrange and reference monitors. The ADC provides highly accurate zero temperature drift conversion data for highly sophisticated equipment, including weighing scales, strain gauges, and resistive pressure sensors.

Product attribute

Number of digits: 24

Sampling rate (per second) : 7.2k

Input number: 6

Input type: differential, single-ended

Data interface: SPI

Configuration: MUX-PGA-ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 1

Architecture: trigonometric integration

Reference type: External, internal

Voltage - power supply, analog: 4.75V ~ 5.25V

Voltage - power supply, number: 2.7V ~ 5.25V

Features: Internal oscillator, PGA, temperature sensor

Operating temperature: -40°C ~ 125°C

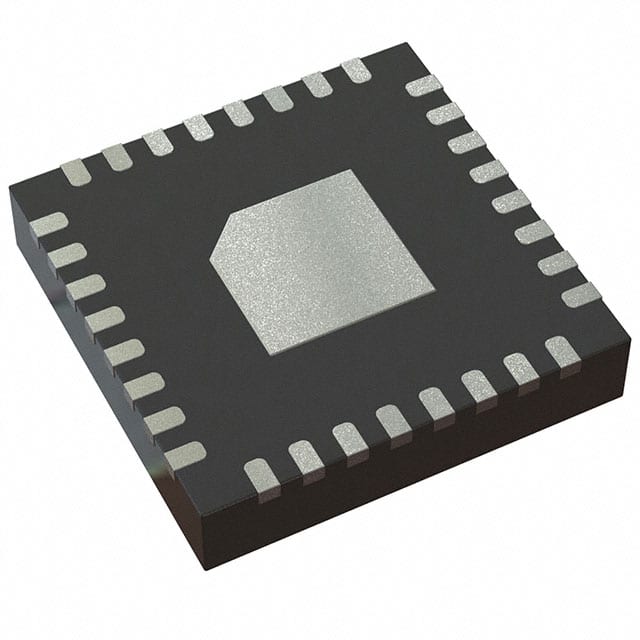

Package/housing: 32-VFQFN bare pad

Supplier Package: 32-VQFN (5x5)

Mounting type: Surface mount type

Basic product number: ADS1235

Product application

• Weighing scales and strain gauge digitizers

• Dynamic weighing system

• Pressure measurement

• Process analysis
