The AMC131M03DFMR is a precision three-channel data and supply isolated synchronous sampling 24-bit Δ-Σ analogue-to-digital converter (ADC).The AMC131M03DFMR is ideally suited for energy metering and power metering applications due to its wide dynamic range, low power consumption, and features specific to power measurement. Because of the device's high input impedance, the ADC input can be directly connected to a resistive voltage divider network or shunt sensor.

Features

- Three isolated synchronous sampling Δ-ΣADCs with differential or single-ended inputs

- Single-supply operation (3.3V or 5V) with integrated DC/DC converter

- Low EMI: CISPR-11 and CISPR-25 compliant

- Programmable data rate: up to 64kSPS

- Programmable gain: up to 128

- Low drift internal voltage reference

- Internal temperature sensor

- 4-wire SPI interface with cyclic redundancy check (CRC) function

- Safety-related approvals:

- 7070VPEAK enhanced isolation according to DIN EN IEC 60747-17 (VDE 0884-17)

- UL1577-compliant up to 1-minute 5000VRMS isolation

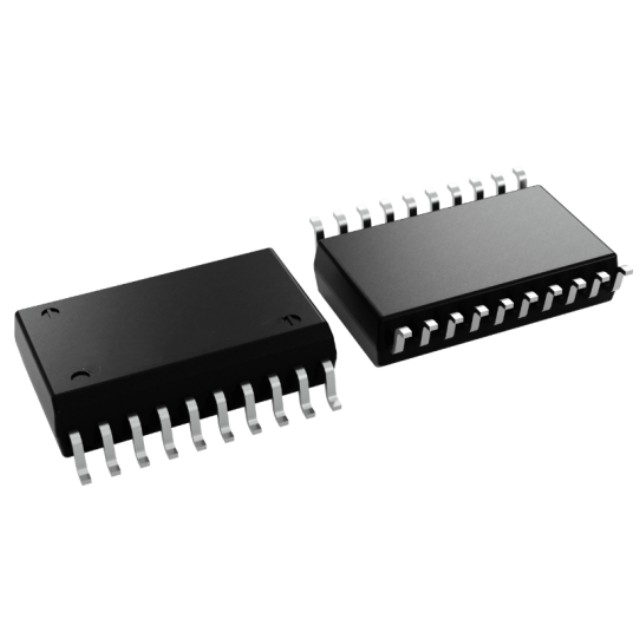

- Package: 20-pin wide-body SOIC

- Operating temperature range: -40°C to +125°C

Applications

- Electricity meters: commercial and residential

- Circuit breakers

- Electric vehicle charging stations

- Battery management systems
