Service Telephone:86-755-83294757

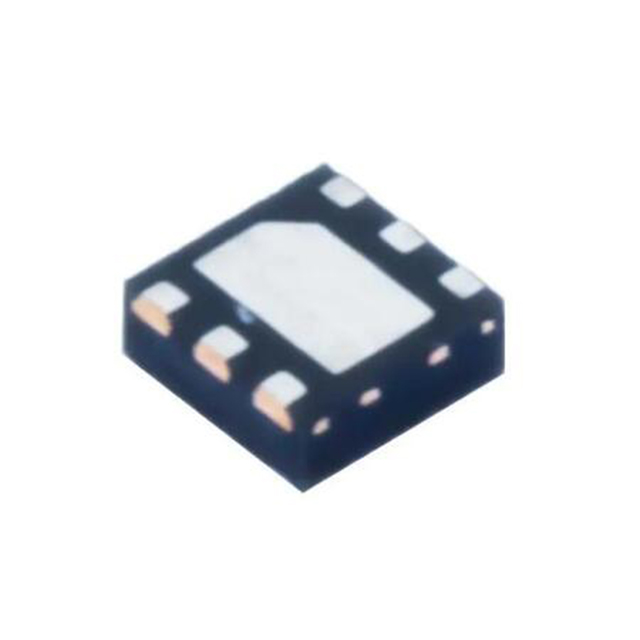

Trade Name:TPS61161DRVR
Data Manual:TPS61161DRVR.pdf
Brand:TI
Particular Year:23+
Package:WSON6
Delivery Date:New and Original
Stock: 8000pcs
The TPS61161DRVR white LED driver has an integrated 40V switch FET, which has a boost converter to drive the series LED. The boost converter operates at a fixed frequency of 600kHz, reducing output ripple and improving conversion efficiency.
Product specifications
Type DC DC regulator
Topology Upgrade (Boost)
Voltage - power supply (maximum) 18V
Voltage - output 38V
Dimming PWM
Apply backlight
Working temperature -40 ° C~85 ° C (TA)
Installation Type Surface Mount
Packaging/Box 6-WDFN Exposed Liner
Product Features
Input voltage range from 2.7V to 18V
26V open circuit LED protection (TPS61160)
38V open circuit LED protection (TPS61161)
200mV reference voltage, accuracy ± 2%
Flexible digital and PWM brightness control
Built-in soft start
Up to 90% efficiency
