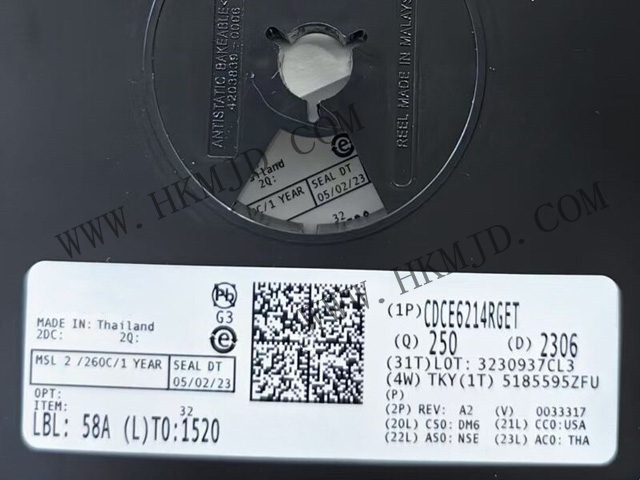

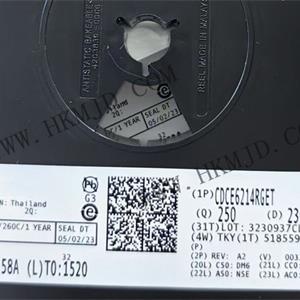

The CDCE6214RGET is an ultra-low-power clock generator in a 24-VQFN (4mm×4mm) package, suitable for applications such as data centres, enterprise computing, PCs/laptops, and multifunction printers. The device integrates a single Frac-N PLL, supports four differential outputs, and can generate five independent clocks, which can be flexibly configured via an I²C interface or GPIO pins.

CDCE6214RGET Product Specifications

Manufacturer: Texas Instruments

Package: 24-VQFN (4mm × 4mm)

PLL Type: Frac-N PLL

Input Frequency Range: 10MHz to 200MHz (differential/LVCMOS)

10MHz to 50MHz (crystal): 6

Output Frequency Range: 24kHz to 328.125MHz

Maximum Output Frequency: 350MHz

Number of Outputs: 4 differential + 1 LVCMOS

Supply Voltage: 1.71V to 3.465V

Operating Temperature: -40°C to +105°C

Interface Control: I²C (400kHz) or GPIO pin mode

CDCE6214RGET Product Features

Ultra-low power consumption design:

Typical power consumption: 65mA for 4 output channels, 23mA for 1 output channel.

Supply voltage range: 1.71V to 3.465V, supporting 1.8V/2.5V/3.3V level conversion.

High-performance PLL clock synthesis:

Frac-N PLL, supports integer/fractional modes, capable of synthesising output frequencies from 24 kHz to 328.125 MHz.

Low jitter performance (integer mode):

Differential output: 350fs (typical), 600fs (maximum)

LVCMOS output: 1.05ps (typical), 1.5ps (maximum).

Flexible input/output configuration:

Input: Supports single-ended (LVCMOS), differential (LVDS/HCSL), or crystal (10MHz to 50MHz).

Output: 4 programmable outputs, supporting LP-HCSL, LVDS, and LVCMOS drive modes.

Integrated EEPROM: Supports user programming, stores configurations, and facilitates automatic loading during system startup.

Industrial-grade/automotive-grade (CDCE6214-Q1): Operating temperature: -40°C to +105°C (industrial-grade).

CDCE6214RGET Application Areas

• PCIe 1.0 to 5.0 clock control

• Data centres and enterprise-level computing, personal computers and laptops

• Enterprise-level devices - multifunction printers

• Test and measurement, handheld devices
