Trade Name:MAX20431AR/V
Brand:Maxim
Particular Year:23+

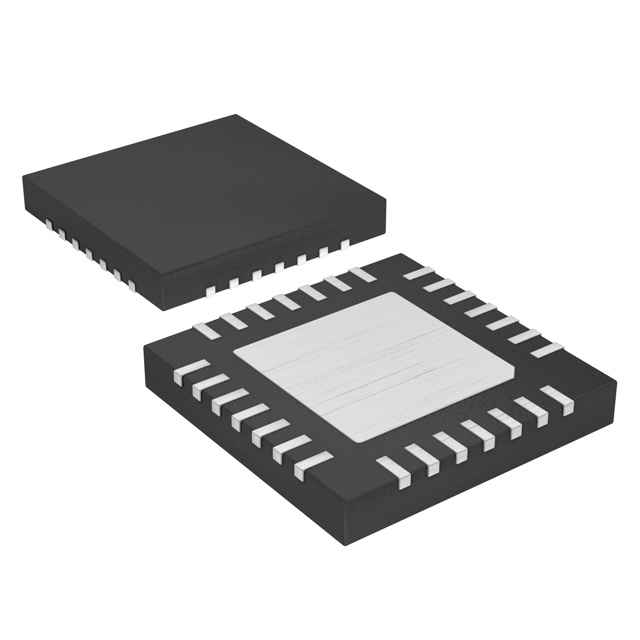

Package:TQFN
Delivery Date:New and Original
Stock: 1000pcs
The MAX20431AR/V is a high efficiency quad output DC-DC converter with windowed watchdog.OUT1 is a synchronous buck converter that converts automotive battery voltage to 3.3V at up to 2.5A.
Benefits and Features
Compact size combines multiple functions
Synchronous high-voltage buck converter up to 2.5A
Input voltage range: 3.5V to 40V
Output voltage of 3.3V
5V synchronous 500mA boost converter
Up to 3A dual synchronous buck converter
0.5V to 3.6875V in 12.5mV steps
Flexible Power Timing Controller
Programmable Poll/Response or Window Watchdog
Two free programmable under/over voltage monitors
0.8V to 3.9875V in 12.5mV steps
I2C ultra-fast mode compatible interface with Packet Error Check option (PEC)
2.1MHz internal operation with spread spectrum option
RESET output
Current mode, forced PWM operation
High accuracy for ASIL applications
Output voltage accuracy: ±1.5 per cent
±1% under/over voltage monitoring
MAXQ Power Architecture
Diagnostic and redundant circuitry
ASIL C compliant
Redundant reference voltage sources
BIST diagnostics
Fail-safe for open pins
Shorted pin detection on reset
Mounting ID position detection
Stable performance for automotive environments
Over temperature and short circuit protection
5mm x 5mm, wet-side TQFN package
-40°C to +125°C temperature range for Class 1 automotive applications
Applications
Advanced driver assistance systems (ADAS)
