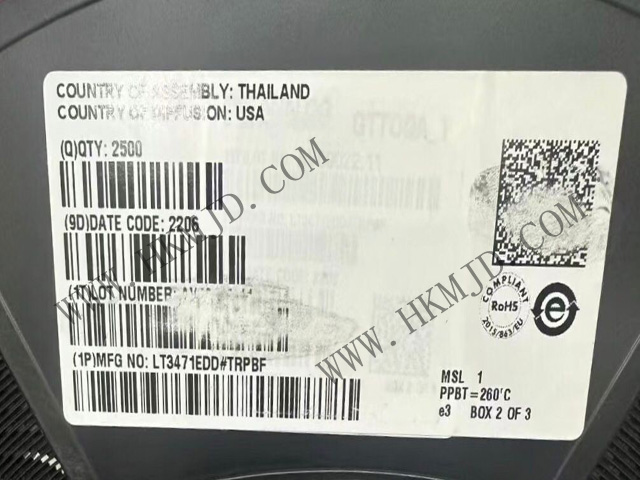

For picture reference, please see the specifications
< >

Commodity Model:LT3471EDD

Trade Name:Switching Regulator

Brand:ADI

Particular Year:22+

Package:DFN-10

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3471EDD
Package
DFN-10
Describe
1.3A, 1.2MHz, Dual Boost/Negative Output Converter, DFN-10

Product Description

LT3471EDD: 1.3A, 1.2MHz, Dual Boost/Negative Output Converter, DFN-10


Overview:

The LT3471EDD Dual Switching Regulator combines two 42V, 1.3A switches with error amplifiers capable of detecting at up to ground potential, thus provide boost and negative output conversion.

The LT3471EDD has a switching frequency of 1.2MHz, allowing the use of small, low-cost, low-profile inductors and capacitors.

The LT3471EDD switch is rated at 42V, making the device ideal for boost converters up to ±40V as well as SEPIC and flyback designs.


LT3471EDD Product Features:

1.2MHz Switching Frequency

Low VCESAT Switch: 330mV/1.3A

High Output Voltage: up to 40V

Wide Input Range: 2.4V to 16V

Inverting Capability

Provides a 5V/630mA output from a 3.3V input

Provides a 12V/320mA output from a 5V input

Provides a -12V/ 200mA output from a 5V input 200mA output

Available in a slim surface mount assembly

Low shutdown current: < 1µA

Low profile (only 0.75mm high) 10-pin 3mm x 3mm DFN package


LT3471EDD Applications:

Organic LED Power Supplies

Digital Cameras

White LED Power Supplies

Cellular Phones

Medical Diagnostic Equipment

Native ±5V or ±12V Power Supplies

TFT-LCD Bias Supplies

xDSL Power Supplies
