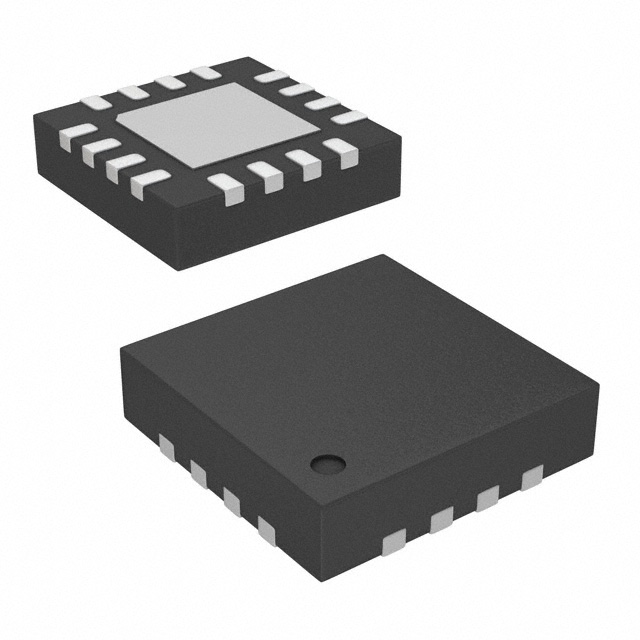

Commodity Model:HMC8414ACPZN

Trade Name:HMC8414ACPZN

Data Manual:HMC8414ACPZN.pdf

Brand:ADI

Particular Year:23+

Package:LFCSP-16

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC8414ACPZN
Package
LFCSP-16
Describe
Low Noise Amplifier with Bypass Switch 0.1 GHz to 10 GHz

Product Description

The HMC8414ACPZN is a low-noise broadband amplifier with a bypass switch that operates from 0.1 GHz to 10 GHz. The integrated bypass switch enables high dynamic range systems with large signal variations in the receive path. Typical insertion loss and input third-order intercept (IIP3) in the bypass path are 1.5 dB and 49.4 dBm, respectively.


The inputs and outputs of the HMC8414ACPZN are internally matched to 50 Ω over the full operating range of the device, with a single positive supply voltage range of 3 V to 6 V. The bias current is set by a resistor connected between the RBIAS pin and the VDD pins (RFOUT/VDD1 and VDD2), and can be varied around the 90 mA nominal value.


The HMC8414ACPZN is manufactured using a gallium arsenide (GaAs), mimetic high electron mobility transistor (pHEMT) process. It is available in a RoHS-compliant 3 mm × 3 mm LFCSP package and operates over the -40°C to +85°C temperature range.


Features

Integrated amplifier bypass switch

Self-biasing with adjustable bias current

Amplifier path gain: 16 dB typical gain from 7 GHz to 10 GHz

OIP3 in the amplifier path: 36.5 dBm typical over the 0.1 GHz to 4 GHz frequency range

Noise Figure in Amplifier Path: 2 dB typical from 0.1 GHz to 4 GHz

Insertion loss in bypass path: 1.5 dB typical from 0.1 GHz to 4 GHz

16-lead, 3 mm × 3 mm LFCSP package


Applications

Test and measurement equipment

Wideband, high dynamic range receivers

Associated Products

Model

Brand

Package

Quantity

Describe

ADL8109ACPZN

ADI

LFCSP-8

3000

High survivability and low noise amplifiers ranging from 1 GHz to 20 GHz

ADL8113ACCZ

ADI

LGA-28

3000

10MHz to 12GHz low-noise amplifier with 10MHz to 14GHz bypass switch

HMC752LC4

ADI

SMT-24

2500

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz

HMC516LC5

ADI

SMT-32

3000

SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz

HMC517LC4TR

ADI

LGA-24

2500

Low Noise Amplifier in SMT Package, 17 - 26 GHz

MAX2180AETG

Maxim

TQFN-24

3000

AM/FM car antenna low noise amplifier

RFFM4227TR13

Qorvo

DFN-6

5000

2.4 GHz 802.11b/g/n Wi-Fi Low Noise Amplifier with Bypass

MMA042AA

Microchip

QFN

3000

2GHz to 26GHz Distributed Amplifier Chip

MMA043PP4

Microchip

QFN-24

3000

0.5GHz to 12GHz, 4x4 SMT, Low Noise Broadband Amplifier

ADL8103ACPZN

ADI

LFCSP-8

3000

High Input Survivability, Low Noise Amplifier, 6 GHz to 12 GHz
