BGA524N6E6329XTSA1 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1550 MHz to 1615 MHz like GPS, GLONASS, Beidou, Galileo and others.

Feature

High insertion power gain: 19.6 dB

Out-of-band input 3rd order intercept point: -4dBm

Input 1 dB compression point: -12 dBm

Low noise figure: 0.55 dB

Very low current consumption: 2.5 mA

Operating frequencies: 1550 - 1615 MHz

Supply voltage: 1.5 V to 3.3 V

Digital on/off switch (1V logic high level)

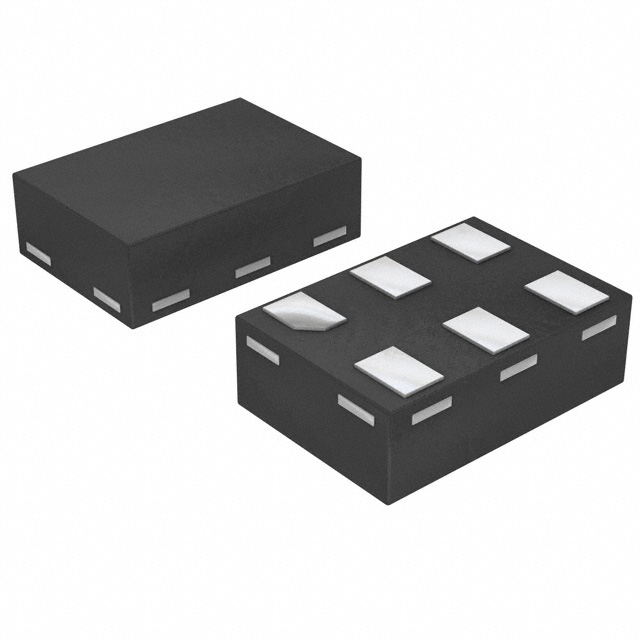

Ultra small TSNP-6-2 / TSNP-6-10 leadless package (footprint: 0.7 x1.1 mm2)

B7HF Silicon Germanium technology

RF output internally matched to 50 Ω

Only 1 external SMD component necessary

2kV HBM ESD protection (including AI-pin)

Pb-free (RoHS compliant) package

Applications

Ideal for all Global Navigation Satellite Systems (GNSS) like GPS, GLONASS, Beidou, Galileo and others
