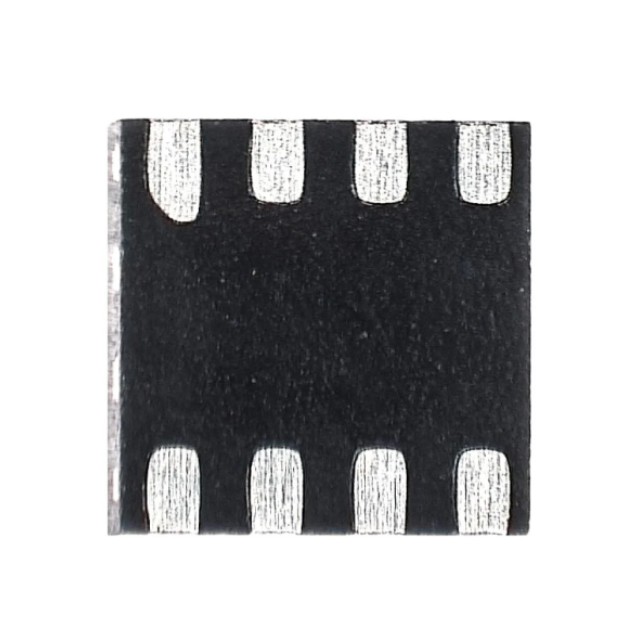

Trade Name:MAX17640BATA
Data Manual:MAX17640BATA.pdf
Brand:Maxim
Particular Year:23+
Package:TDFN-8
Delivery Date:New and Original
Stock: 1000pcs
The MAX17640BATA products are high-efficiency, high-voltage, Himalaya synchronous DC-DC converters with integrated MOSFETs that operate over a wide input voltage range of 4.5V to 60V.
Product Features
Eliminate external components and reduce total cost of ownership
Schottky-free synchronous operation for improved efficiency and reduced cost
Internal compensation
Internal feedback divider for 3.3V, 5V fixed output voltage
Internal soft-start
All ceramic capacitors for ultra-compact layout
Flexibility to support multiple power rails in a system
Wide input voltage range: 4.5V to 60V
3.3V and 5V fixed output voltages
Adjustable output voltage: 0.9V to 0.89 x VIN
Provides up to 400mA of load current
Configurable between PFM and forced PWM modes
Reduced power consumption
Peak efficiency: 92 percent
PFM feature improves light load efficiency
Shutdown current: 2.2µA (typical)
Reliable operation in harsh industrial environments
Hiccup mode current limiting and auto retry startup
Built-in output voltage monitoring via open-drain low active RESET pin
Programmable EN/UVLO thresholds
Monotonic startup to pre-biased outputs
Over Temperature Protection
Wide -40°C to +125°C ambient operating temperature range
Complies with CISPR32 (EN55032) Class B Conducted and Electromagnetic Emission Nuisance related requirements
Applications
Industrial Sensors
4-20mA Current Loops
HVAC and Building Control
High Voltage LDO Replacement
General purpose point-of-load
