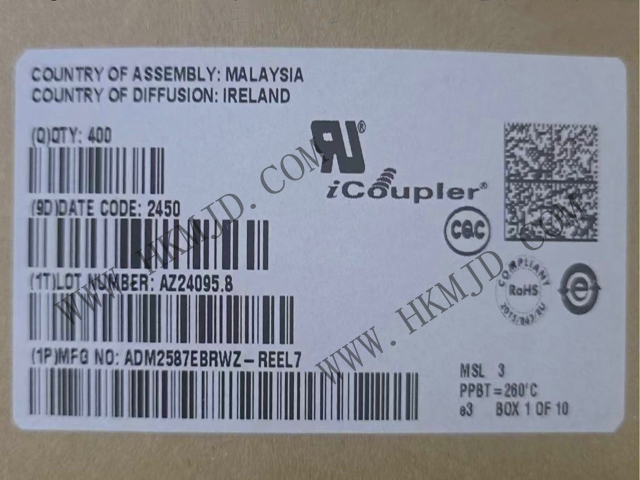

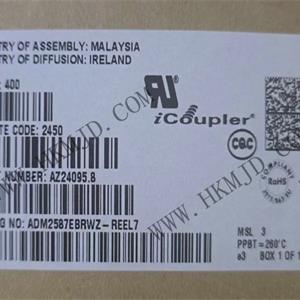

For picture reference, please see the specifications
< >

Commodity Model:ADM2587EBRWZ

Trade Name:ADM2587EBRWZ

Data Manual:ADM2587EBRWZ.pdf

Brand:ADI

Particular Year:23+

Package:SOP20

Delivery Date:New and Original

Stock: 12800pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADM2587EBRWZ
Package
SOP20
Describe
RS422, RS485 Digital Isolator 2500Vrms 3-channel 500kbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm wide)

Product Description

The ADM2587EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection for high speed communication on multipoint transmission lines. the ADM2587E includes an integrated DC galvanic isolated power supply and does not require an external DC galvanic isolation block.


Product attributes

Series: IsoPower®, iCoupler®

Packaging: Tubes

Technology: Magnetically coupled

Type: RS422, RS485

Isolated power supply: Yes

Number of channels: 3

Input - Side 1/Side 2: 2/1

Channel Type: Unidirectional

Voltage - isolated: 2500Vrms

Common Mode Transient Immunity (min): 25kV/µs

Data Rate: 500kbps

Propagation delay tpLH / tpHL (max): -

Pulse width distortion (max): -

Rise/fall time (typical): 1.1µs, 1.1µs (max)

Voltage - Supply: 3.3V, 5V

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package/Case: 20-SOIC (0.295", 7.50 mm wide)

Supplier Device Package: 20-SOIC

Base Part Number: ADM2587


Applications

Isolated RS-485/RS-422 interfaces

Industrial field networks

Multi-point data transmission systems


Associated Products

Model

Brand

Package

Quantity

Describe

4DIR1421HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

4DIR1420HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

4DIR1400HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

4DIR0401HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

4DIR0400HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

4DIR2400HAXUMA1

INFINEON

PG-DSO-16

2000

Quad-channel Digital Isolator

NCIV9401R2

ON

SOIC-16

3000

Digital Isolator 5000Vrms 4-Channel 10Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm wide)

4DIR1420HXUMA1

INFINEON

PG-DSO-16

2000

Robust Quad-Channel Digital Isolator with precise timing and low power consumption

4DIR1400HXUMA1

INFINEON

PG-DSO-16

2000

Robust Quad-Channel Digital Isolator with precise timing and low power consumption

4DIR2400HXUMA1

INFINEON

PG-DSO-16

2000

Robust Quad-Channel Digital Isolator with precise timing and low power consumption
