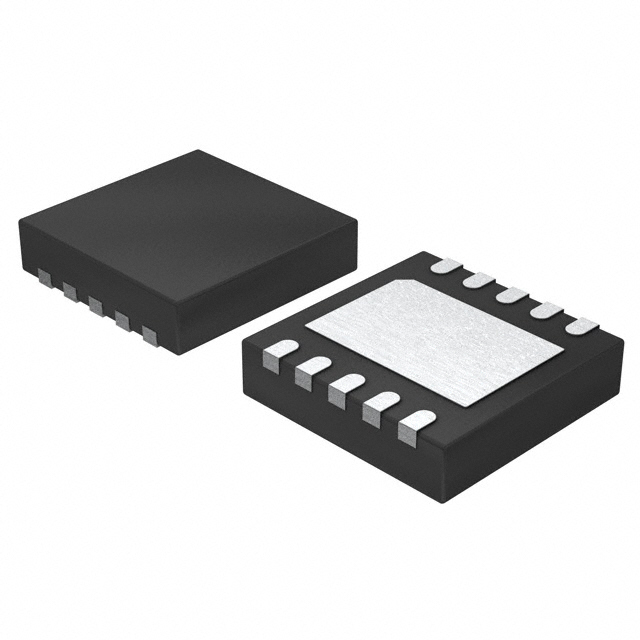

For picture reference, please see the specifications
< >

Commodity Model:MAX17670EATB

Trade Name:MAX17670EATB

Data Manual:MAX17670EATB.pdf

Brand:Maxim

Particular Year:23+

Package:TDFN-10

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX17670EATB
Package
TDFN-10
Describe
Step-Down Switching Regulator IC Positive Fixed 3.3V 1 Output 150mA 10-WFDFN Exposed Pad

Product Description

The MAX17670EATB is a dual output regulator with an integrated 4V to 60V, 150mA, high-voltage, high-efficiency, synchronous buck converter with an internal MOSFET and a high-PSRR, low-noise, 2.35V to 5V, 50mA linear regulator.


Feedback voltage regulation accuracy is ±1.3% for the linear regulator and ±2% for the buck converter over the -40°C to +125°C temperature range. The devices are available in a compact 10-pin (3mm x 3mm) TDFN package. Simulation mode is available.


Features

Reduced external components for lower overall cost

Schottky diode-free synchronous operation

Internal compensation

Built-in soft-start

Compact design with all ceramic capacitors

Step-down converter outputs with inductive short-circuit protection

Reduced inventory list of DC-DC regulators

Step-down converter with wide 4V to 60V input voltage range

Up to 98% duty cycle buck operation

Step-Down Converter with Adjustable Switching Frequency Range of 200kHz to 2.2MHz

Linear regulator section with 2.35V to 5V input range

Linear regulator with up to 50mA load current capability

Reduced power consumption

50µA no-load current

PFM support for enhanced light-load efficiency

2.5μA shutdown current

Bootstrap bias input improves efficiency

Reliable operation in harsh environments

Peak current limit protection

Built-in output voltage monitoring with active-low RESET pin

Resistor programmable EN/UVLO thresholds

Monotonic entry into pre-biased load state at startup

Thermal Protection

Industrial grade high temperature -40°C to +125°C operating temperature range


Applications

Battery powered equipment

High voltage linear regulator replacement

HVAC and Building Control

Industrial sensors and process control

Associated Products

Model

Brand

Package

Quantity

Describe

LT1946AEMS8E

ADI

MSOP-8

15000

Switching Regulator 2.7MHz Boost DC/DC Conv w/ 1.5A Switch

TPS62260DRVR

TI

WSON-6

12000

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA 6-WDFN Unpopulated Pad

MAX20830TAFE

Maxim

FC2QFN-16

5000

30A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus

MAX20075DATCE/V

Maxim

TDFN-12

2000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 1V (3.3V) 1 Output 600mA

MAX20075DATCD/VY

Maxim

TDFN-12

1000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 3V (3.6V) 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCC/VY

Maxim

12-TDFN

1000

Buck Switching Regulator IC Positive Adjustable 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCC/V

Maxim

12-TDFN

1000

Step-Down Switching Regulator IC Positive Programmable (Fixed) 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCB/V

Maxim

12-TDFN

1000

Step-Down Switching Regulator IC Positive Programmable (Fixed) 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX17227AATA

Maxim

8-TDFN

2000

Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 850mA 8-WFDFN Exposed Pad

MAX17227AANT

Maxim

6-WLP

1000

Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 2A
